Watching a program run

MnL’s program visualization tool is called Tarsius. It was designed so that evaluation happens in the visual workspace — the steps are drawn as blocks, not printed as text. That makes it possible to show two things which are awkward to show in a text language: what a function value actually is, and how an application reduces.

The visualization panel

The panel sits along the bottom of the window. Open it with Ctrl+J, from the activity bar, or by switching to the Debug perspective, which arranges the workspace above it. It carries five views:

View Scope Shows
Call-by-Structure A selected application Substitution steps that keep the original parameter block structure.
Call-by-Value A selected application Substitution steps where the parameter is replaced by its evaluated value.
Function Value A selected function The lambda that the function denotes, drawn as blocks.
CSEK Machine The whole program Control, structure, environment and kontinuation, one machine step at a time.
Lockstep The whole program Substitution rewriting and the machine, advanced side by side.
Two ways in

The first three views need a selection: right-click an Application block and choose Call-by-Structure or Call-by-Value, or right-click a Function to see its value. The CSEK Machine and Lockstep views need no selection — press Load and they step the whole program.

Function value

When a block’s type is function, right-click it and choose Function value. The panel renders the value — for a named function, the lambda it stands for.

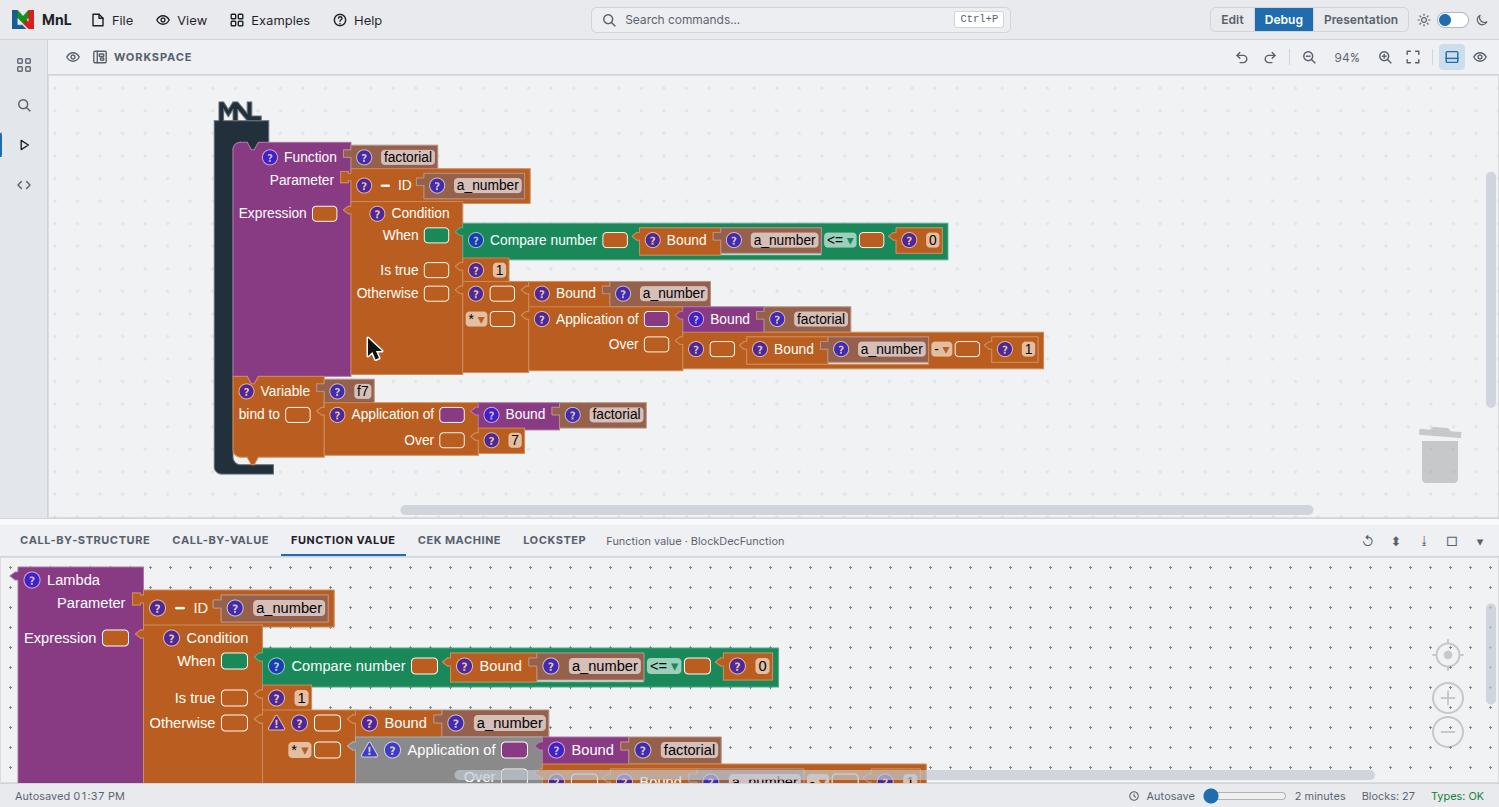

The MnL Function Value view showing the factorial function rendered as a Lambda block with its parameter and body, below the workspace.
MnL 5.0 The value of factorial, drawn as the lambda it denotes.

This is the quickest way to understand a partially applied function: apply one argument, then look at the value of what comes back.

Call-by-structure and call-by-value

Right-click an Application block to reduce it. The view lists each substitution step in order from top to bottom, with its value. MnL’s beta reduction uses eager evaluation; the two views differ in what they do to the parameter:

  • Call-by-Structure keeps the original parameter block structure, which makes it easy to trace where a value came from.
  • Call-by-Value replaces the parameter structure with a new one built from the parameter’s value after evaluation.
Renamed since version 4

If you learned MnL on an earlier build, these two were called Beta Reduction and Beta Reduction — CBV in the block menu. Beta Reduction is now Call-by-Structure; Beta Reduction — CBV is now Call-by-Value. The semantics are unchanged — only the names and the place they appear.

The CSEK machine

New in version 5. Where the reduction views rewrite a selected redex, the CSEK machine runs the whole program as an abstract machine and lets you step it. Press Load, then Step to advance, Back to retreat, or Play to run.

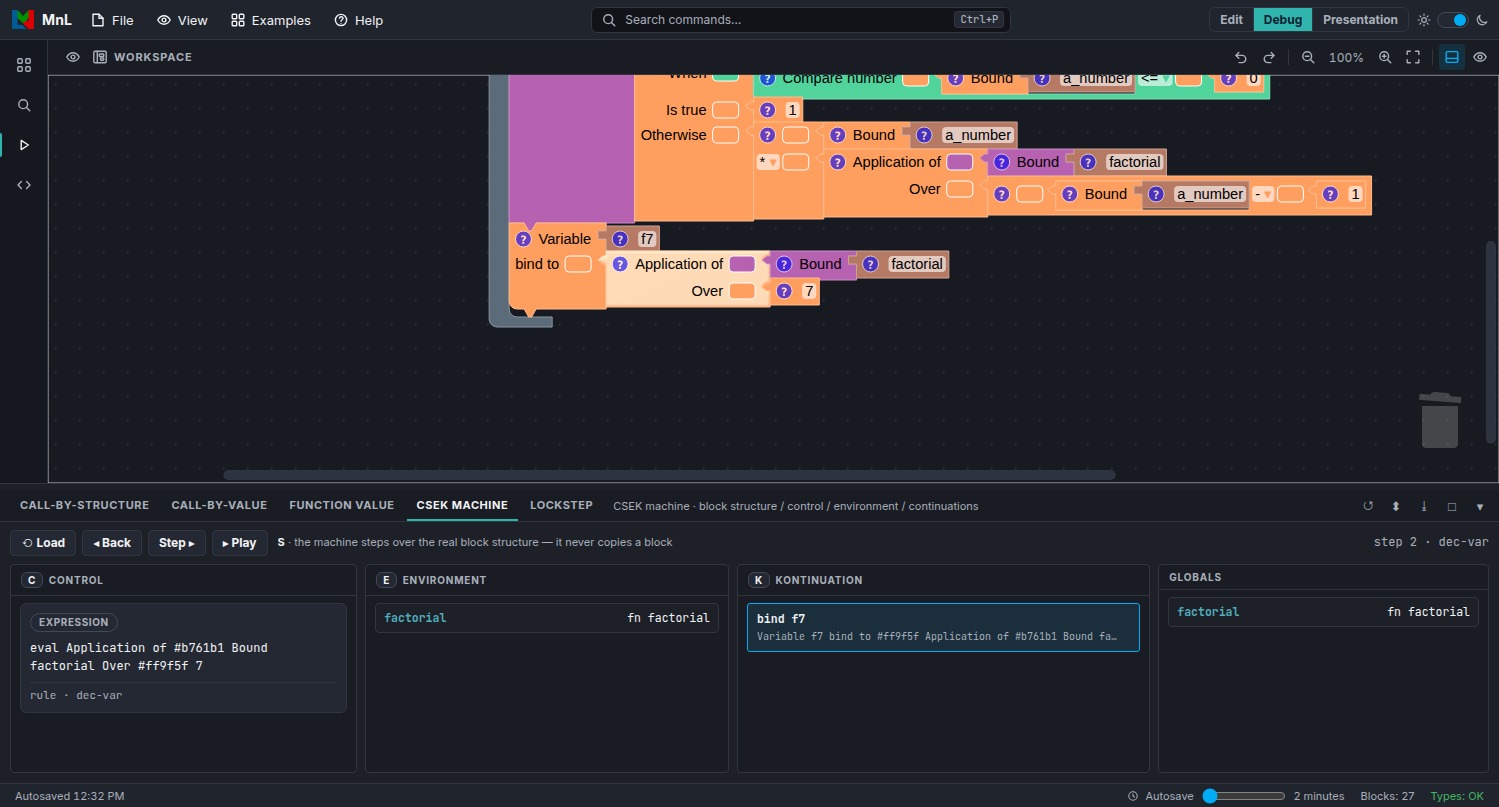

The CSEK machine view at step 2, rule dec-var: the controls bar carries a gloss explaining the S, the Control panel holds an expression to evaluate, Environment binds factorial, Kontinuation holds a bind frame, and Globals lists factorial.
MnL 5.2.0 The CSEK machine at step 2, applying the dec-var rule. The block being evaluated is highlighted in the workspace above.

The S in CSEK is not a panel of its own: it's the live block structure in the workspace above — the same blocks you dragged into place, highlighted as the machine steps, never a serialized copy of them. The panel below still splits the machine state across four panels, C/E/K plus Globals:

Panel Holds
C Control What the machine is working on right now — the expression being evaluated, and the name of the rule being applied.
E Environment The bindings in scope, each name against its value.
K Kontinuation The stack of work still to be done once the current expression produces a value.
Globals The top-level bindings of the program.

The step counter and the current rule name appear at the right of the control strip — step 2 · dec-var in the figure above. As you step, MnL highlights the corresponding block in the workspace, so the machine state and the program stay connected.

Why a machine as well as a rewriter

Substitution shows you what a program reduces to. A machine shows you how an implementation would get there — including the continuation stack, which is invisible in a pure rewriting account. Recursion is the case where the difference is most instructive: load the Factorial example and watch K grow on the way down and unwind on the way back up.

Lockstep

Also new in version 5, and the view that ties the other two accounts together. Lockstep advances substitution rewriting and the CSEK machine at the same time, so you can read one against the other.

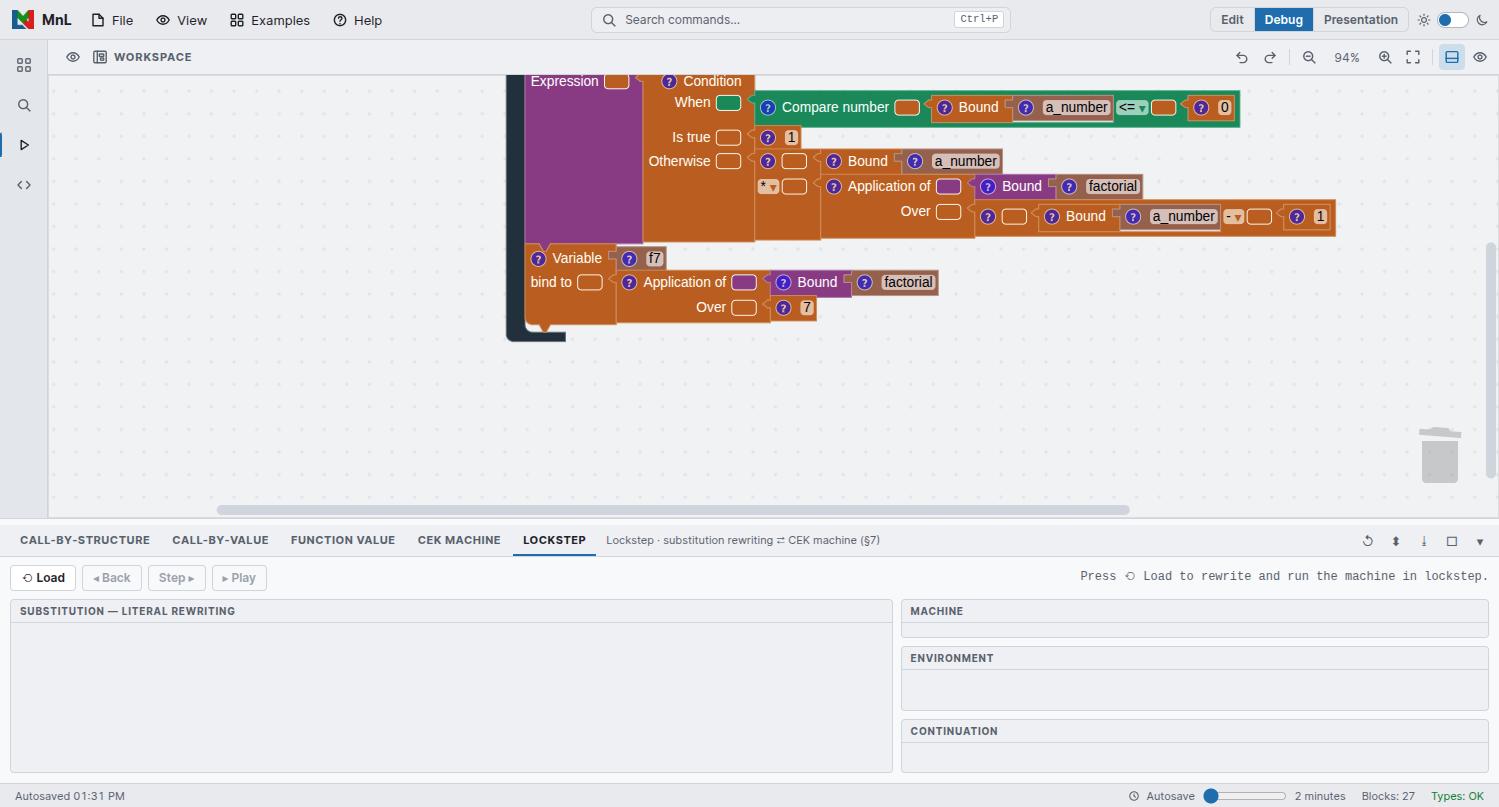

The Lockstep view with a Substitution — literal rewriting panel on the left and Machine, Environment and Continuation panels on the right, before loading.
MnL 5.0 Lockstep, before loading: substitution on the left, machine state on the right.

The left panel is Substitution — literal rewriting. The right-hand column carries Machine, Environment and Continuation. Press Load to rewrite and run the machine together, then step through both.

Panel tools

The icons at the right of the view strip apply to whichever view is open:

  • Re-run — recompute the current view after you change the program.
  • Arrange — lay the rendered blocks out again.
  • Download screenshot — save the view as an image, which is what the figures in this chapter are.
  • Maximize / Hide — give the panel the whole window, or put it away.

You can also drag the divider between the workspace and the panel to resize it.

Nothing to run?

Every view needs a program that type-checks. If a view stays empty, check that the status bar reads Types: OK and that no block still carries a warning triangle.
