08 / Compiler

YAKI and the code panel

MnL’s compiler is called YAKI — Yet Another [K/C]ompiler Interface. It turns a block program into text: into MnL’s own textual form, into Standard ML, into Scala, and — going beyond compilation — into a typing derivation for the program it just read.

YAKI

Everything YAKI produces is live. It recompiles as you edit, so the code panel is always showing the program currently on the workspace rather than a snapshot you asked for.

Changed in version 5

Earlier versions opened YAKI in a separate transpiler window: you right-clicked the workspace, chose Compiler, and picked a target language from a combo box. In version 5 YAKI is the docked code panel on the right of the window, with one tab per target and no combo box.

The code panel

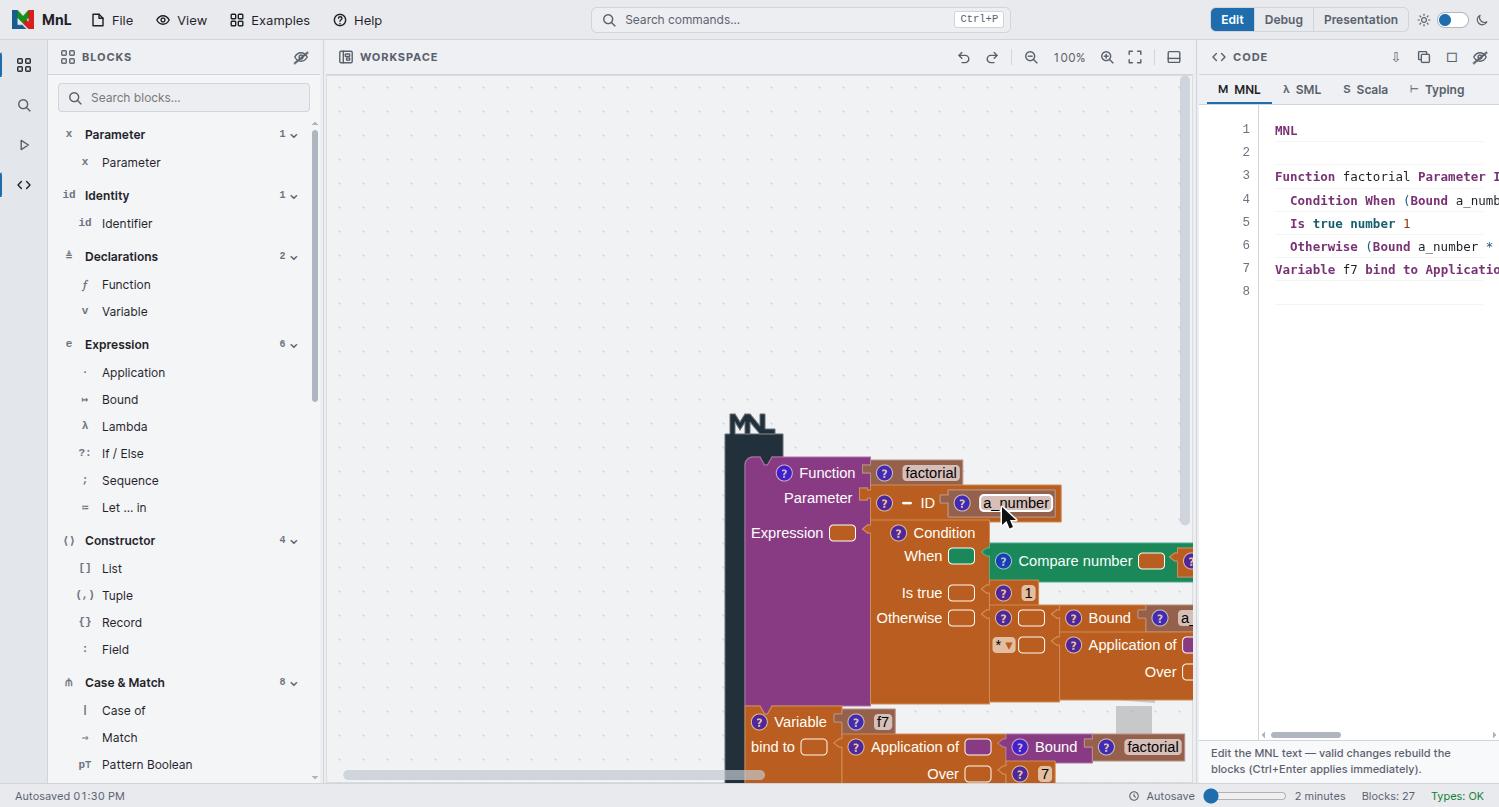

Open it from the activity bar, from the workspace toolbar, or with View: Toggle Code Panel in the command palette. It has four tabs.

Tab	Contents
M MNL	MnL’s own textual syntax. Editable — see below.
λ SML	Standard ML, generated by YAKI.
S Scala	Scala, generated by YAKI.
⊢ Typing	The typing derivation, rule by rule, for a chosen declaration.

MNL text

The MNL tab is not read-only, and this is the most interesting thing about the panel: the mapping between blocks and text runs both ways. Edit the text and a valid change rebuilds the blocks on the workspace. Press Ctrl+Enter to apply an edit immediately rather than waiting.

For the bundled Factorial example, the MNL text reads:

MNL

Function factorial Parameter ID a_number Expression
  Condition When (Bound a_number <= number 0)
  Is true number 1
  Otherwise (Bound a_number * (Application of Bound factorial Over (Bound a_number - number 1)))
Variable f7 bind to Application of Bound factorial Over number 7

Read against the workspace, the text is a direct transcription: Function, Parameter, Expression, Condition / When / Is true / Otherwise, Bound, Application of … Over and Variable … bind to are the labels on the blocks themselves.

Version 5

Round-tripping through text is a fast way to make a bulk change — renaming a parameter everywhere, say — that would take a lot of clicking on the workspace. An edit that does not parse is simply not applied, so the blocks never end up in an inconsistent state.

SML and Scala

YAKI emits both from the same program. Each file is stamped with a header naming the generator.

SML

(* SML Code by YAKI *)

fun factorial (a_number) =
  if (a_number <= 0) then
    1
  else
    (a_number * factorial((a_number - 1)))

val f7 = factorial(7)

Scala

/* Scala Code by YAKI */

def factorial (a_number : Float) : Float =
  if (a_number <= 0) then
    1
  else
    (a_number * factorial((a_number - 1)))

val f7 = factorial(7)

Where the two targets differ

SML relies on inference and needs no annotations; Scala requires them, so YAKI writes the types it inferred into the signature — here a_number : Float and the : Float result. Some MnL constructs have no direct Scala counterpart: records are the clearest case, since Scala has no primitive record type. YAKI says so in a comment rather than emitting something that will not compile.

A smaller worked example — the identity function — shows the same pipeline from blocks to source:

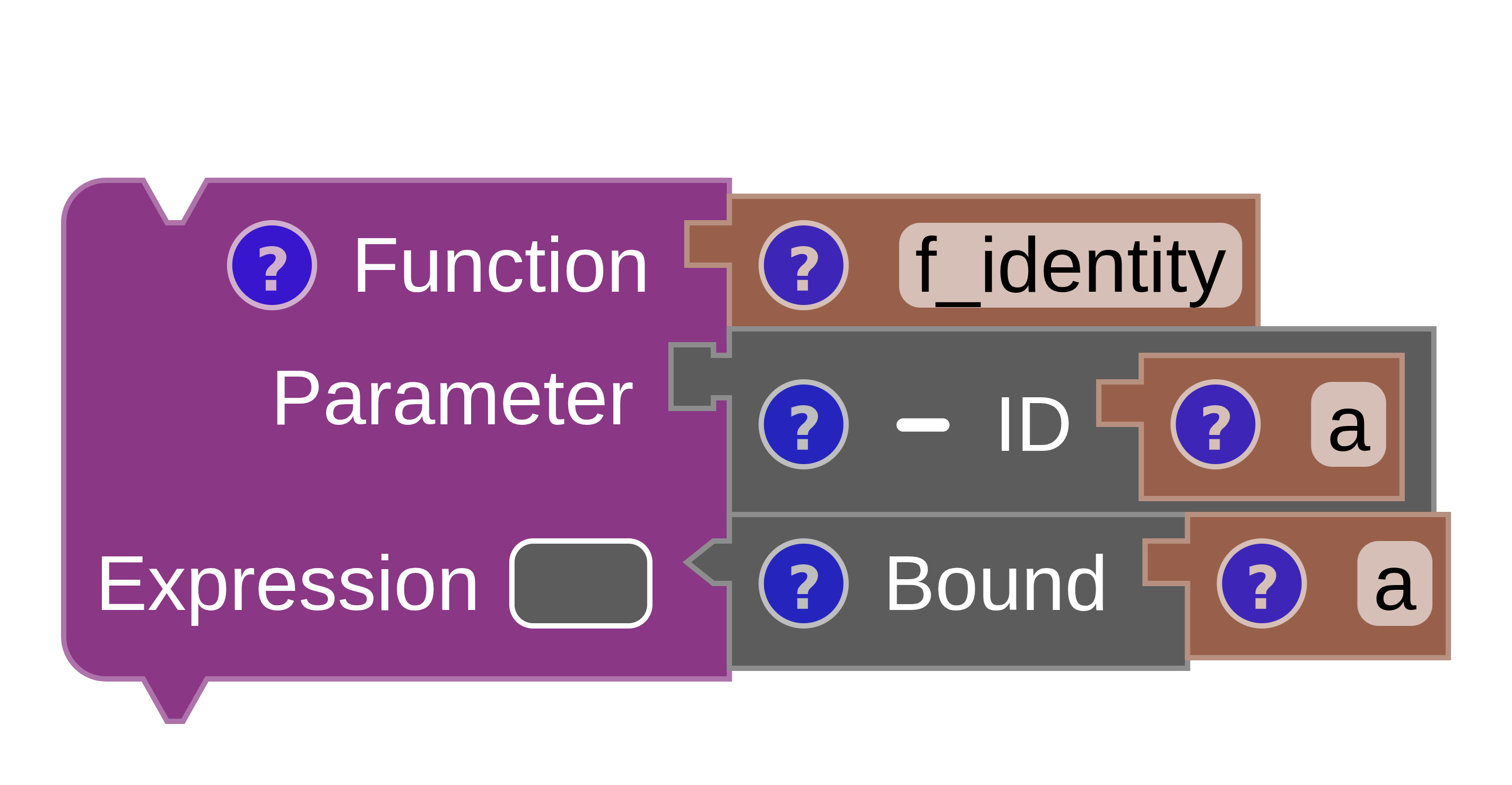

The identity function as MnL blocks alongside the source text generated from it. — **Fig. 1** The identity function, blocks and generated source.

SML

(* identity_function.sml *)
fun f_identity (a) = a

Scala

/* identity_function.scala */
def f_identity [B] (a : B) : B = a

The typing derivation

The Typing tab is where MnL writes out its reasoning about types. Pick a declaration from the row at the top of the tab — factorial or f7 in the Factorial example — and YAKI prints the derivation for it.

Each line is a judgement, preceded by the name of the rule that justifies it:

Γ = factorial : function from (number) to (number)

BT-Id
Γ ⊢ a_number : Identifier ⊗ nothing

BT-BoundParam
Γ, a_number : Parameter ⊗ number ⊢ Bound a_number : Expression ⊗ number
  a_number : Parameter ⊗ number ∈ Γ

BT-Const
Γ, a_number : Parameter ⊗ number ⊢ number 0 : Expression ⊗ number

BT-BinOptr-Arith-Compare
Γ, a_number : Parameter ⊗ number ⊢ (Bound a_number <= number 0) : Expression ⊗ boolean

The shape of a judgement is worth pausing on, because it is the written form of what shape and colour encode on the workspace:

Γ is the typing context — the names in scope with their types.
To the left of ⊗ is the syntactic category: Identifier, Parameter, Expression, Declaration. This is what a block’s notch shape shows.
To the right of ⊗ is the inferred type: number, boolean, nothing. This is what a block’s colour shows.
An indented line such as a_number : Parameter ⊗ number ∈ Γ is a side condition — the lookup that discharges the rule.

Rule names are prefixed BT-: BT-Id for an identifier, BT-Const for a constant, BT-BoundParam for a reference to a parameter, BT-BinOptr-Arith-Compare for a binary comparison, and so on.

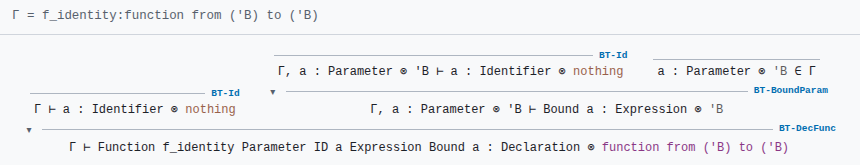

A typing derivation for the identity function, written as inference rules. — **Fig. 2** A typing derivation for the identity function.

Exporting

The icons at the top right of the code panel:

Export MNL text — download the current tab’s text.
Copy generated code — copy it to the clipboard.
Print typing derivation — send the derivation to the printer, which is useful for handouts.
Maximize / Hide — give the panel the whole window, or put it away. Drag its left edge to resize.

To keep the program itself rather than its translation, use File › Save As… and the .mnl workspace format described under files and autosave.
