06 / Types

Types, inferred and suggested

You never declare a type in MnL. Types are inferred from the blocks you attach, and the language shows you its working — in the colour of each block, and in the coloured suggestion box sitting on every input you have not filled yet.

Type inference

The term type of a block depends on what is attached to it. While a block is incomplete its term type defaults to any.

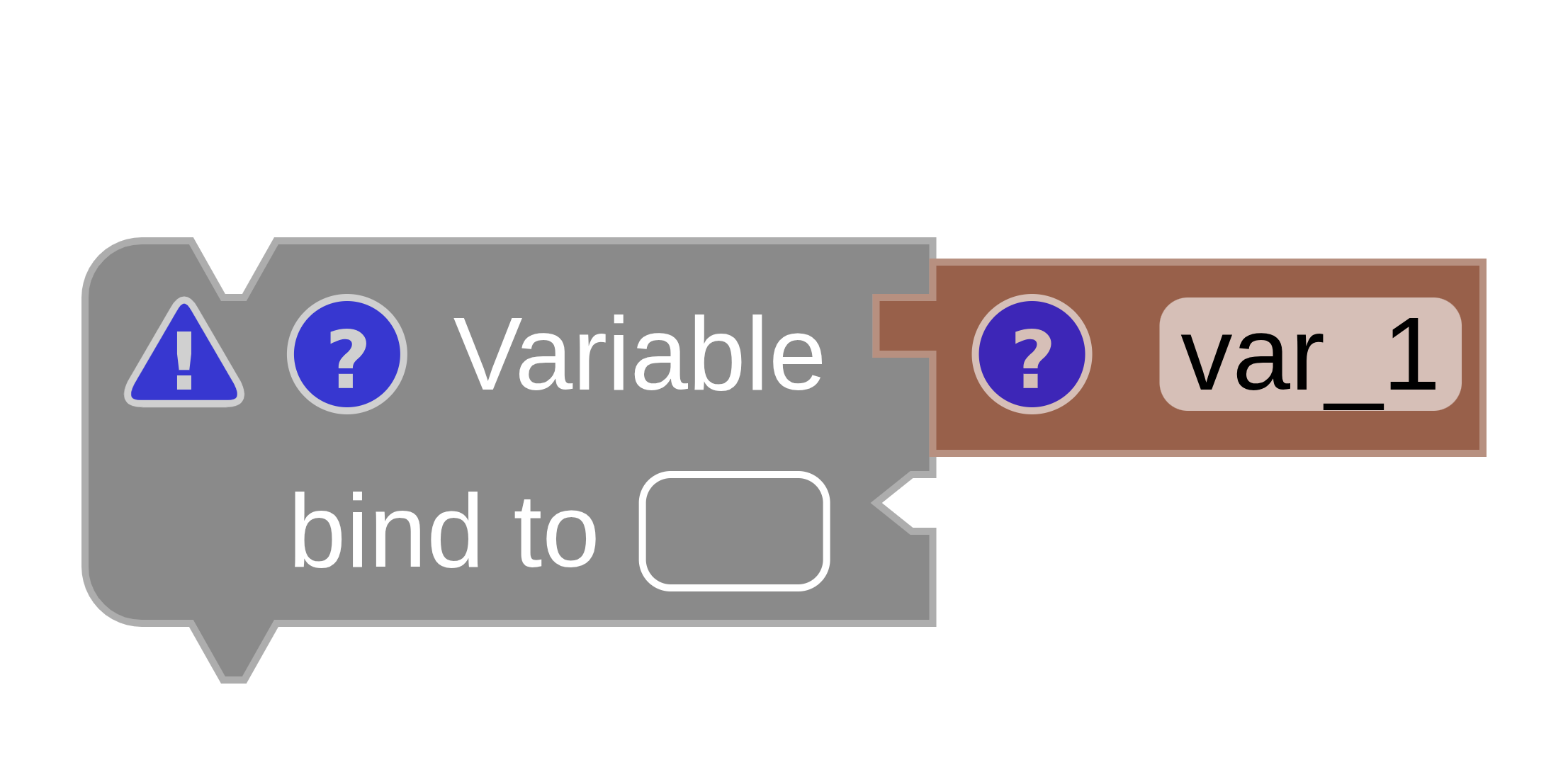

An empty variable block whose term type is shown as any. — **Fig. 1** An empty variable block: term type `any`.

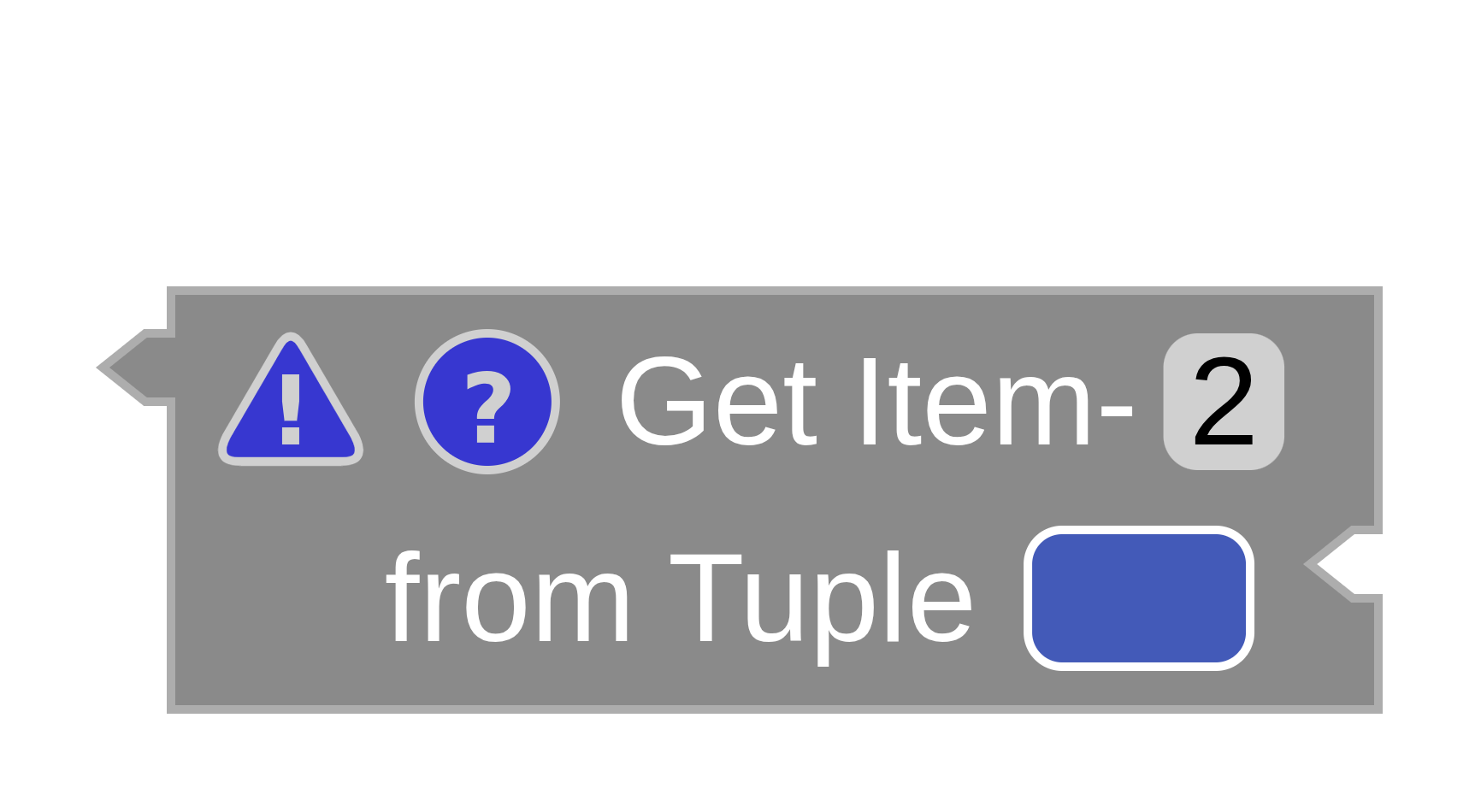

An empty operator block whose term type is shown as any. — **Fig. 2** An empty operator block: term type `any`.

Once the block is complete, the type is inferred. In Fig. 3 the variable’s type comes from the ASCII → Char block attached to it; in Fig. 4 the operator’s type comes from the second inhabitant of the tuple it is projecting out of.

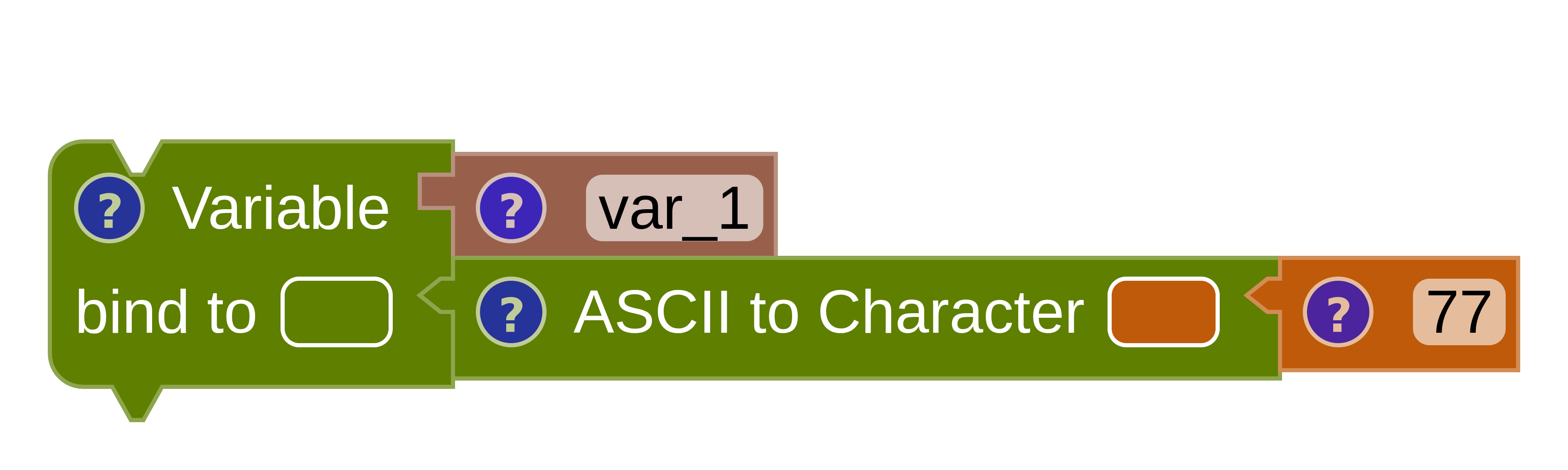

A variable block whose type is inferred as character from the attached ASCII to Character block. — **Fig. 3** Inferred from the attached operator.

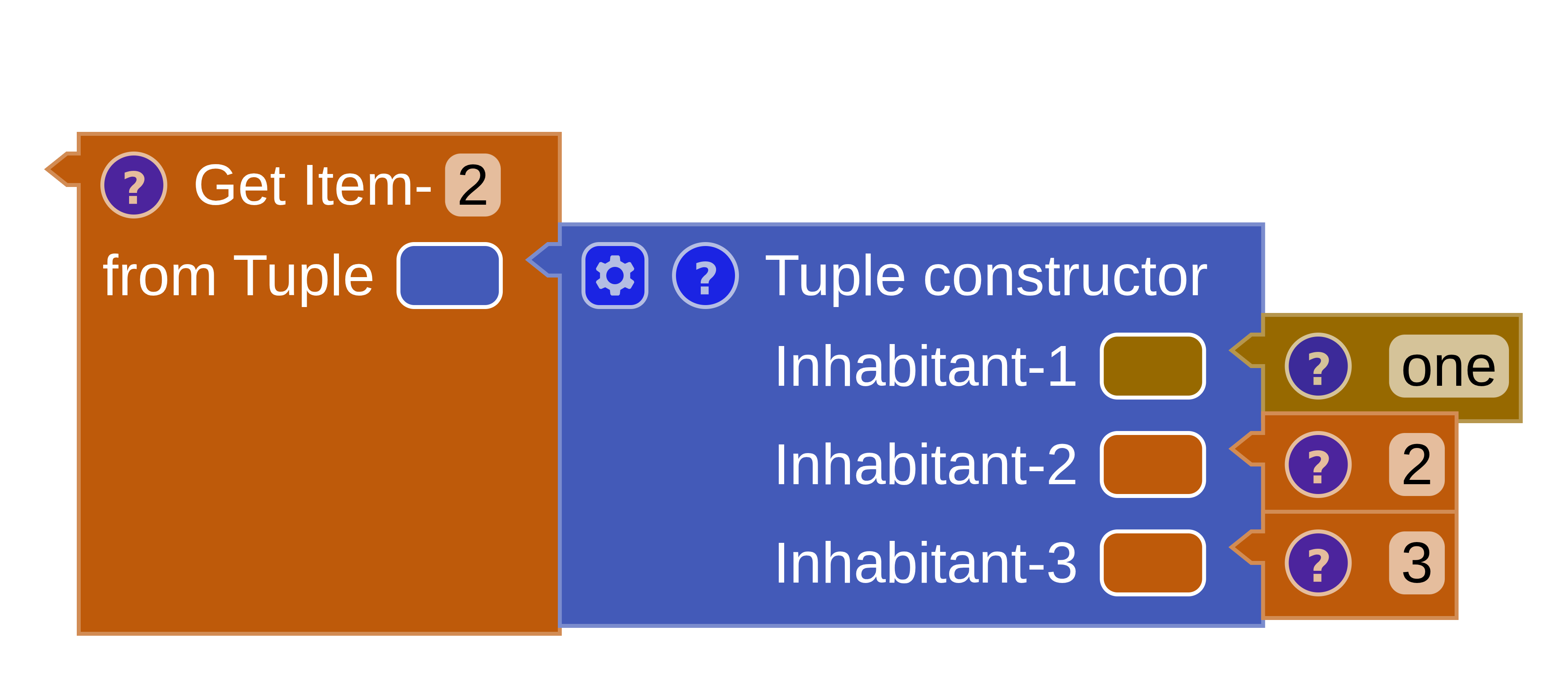

An operator block whose type is inferred as number from the second item of a tuple constructor. — **Fig. 4** Inferred as `number` from a tuple item.

Where to look

Two places tell you the inferred type: the info popup on the block, and the block’s own colour. The status bar summarises the whole program — Types: OK means every block type-checks.

Type suggestion

This is the feature that makes assembling a program feel guided rather than guessed. MnL colours the rounded suggestion box next to each empty input notch with the type it expects there.

To begin with, the suggestion box carries the colour of any — dark silver. As soon as the type can be inferred, the colour changes to match.

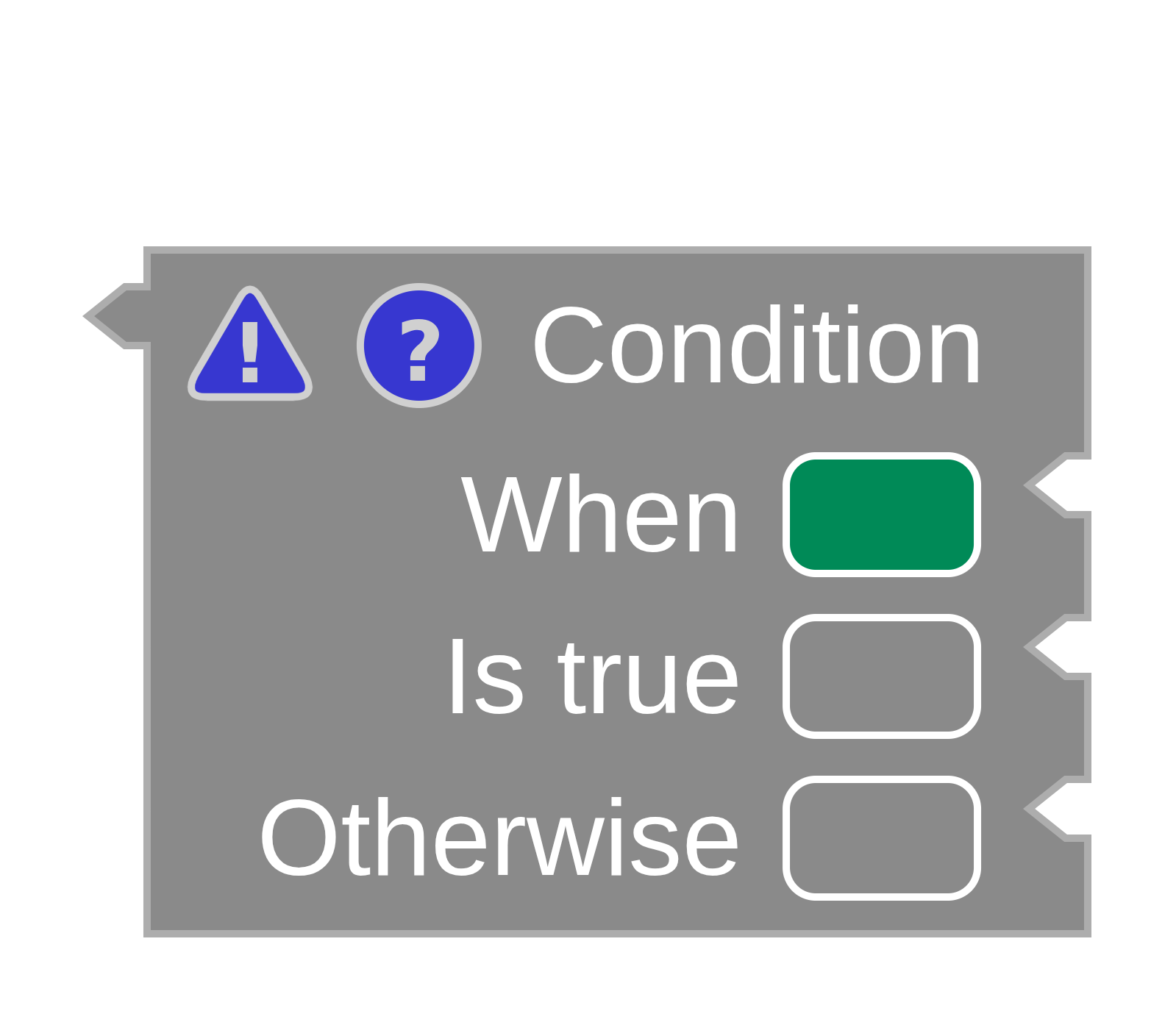

An incomplete block whose empty input suggestion boxes are dark silver, the colour of type any. — **Fig. 5** On a wholly incomplete block, every suggestion is `any`.

Attach something and MnL builds a type from its constraint rules, then recolours the remaining suggestion boxes. A block in this state — some inputs filled, some still empty — is a partially completed block.

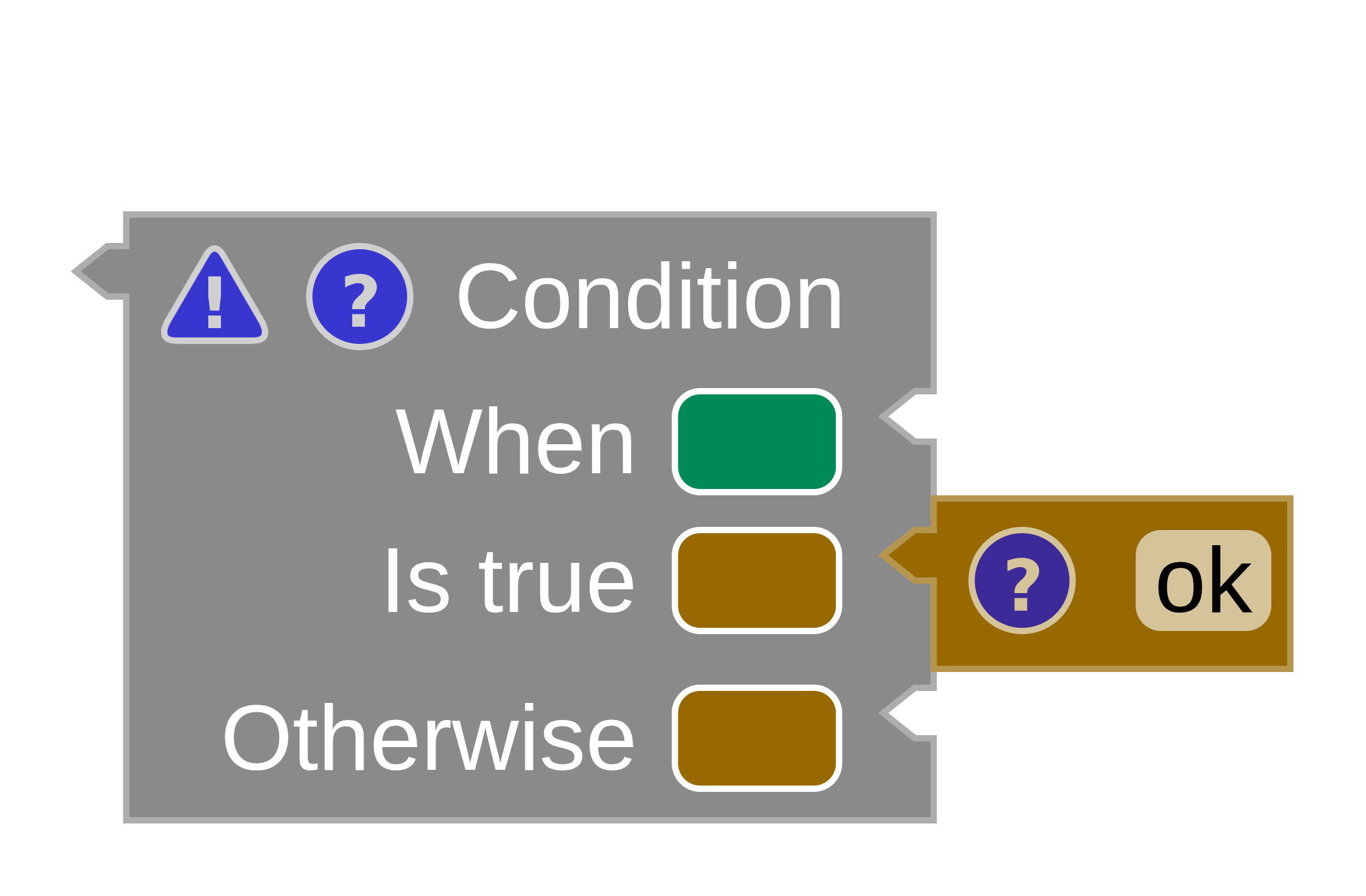

A partially completed block where the remaining empty inputs now show a specific suggested type colour. — **Fig. 6** A partially completed block: the suggestions have narrowed.

Reading the colours

Once every input notch is connected, the block is completed — and you can check it against the typing rule by eye. In Fig. 7 the block attached to the Otherwise input does not comply: the rule requires a green block, and a yellow one has been supplied.

A completed selection block where the Otherwise branch holds a yellow number block although the rule requires a green string block. — **Fig. 7** A type mismatch you can see: green expected, yellow supplied.

Two colours worth memorising

Green is the colour of type string.
Yellow is the colour of type number.

A branch of an If / Else must agree with the other branch, so a green and a yellow block in the two branches is always an error.

Where a type comes from

The type constraint builder looks in a fixed order: the attached input blocks first, then the parent block. When nothing attached to a block determines its type, but the block has a parent, the type is inferred from that parent instead.

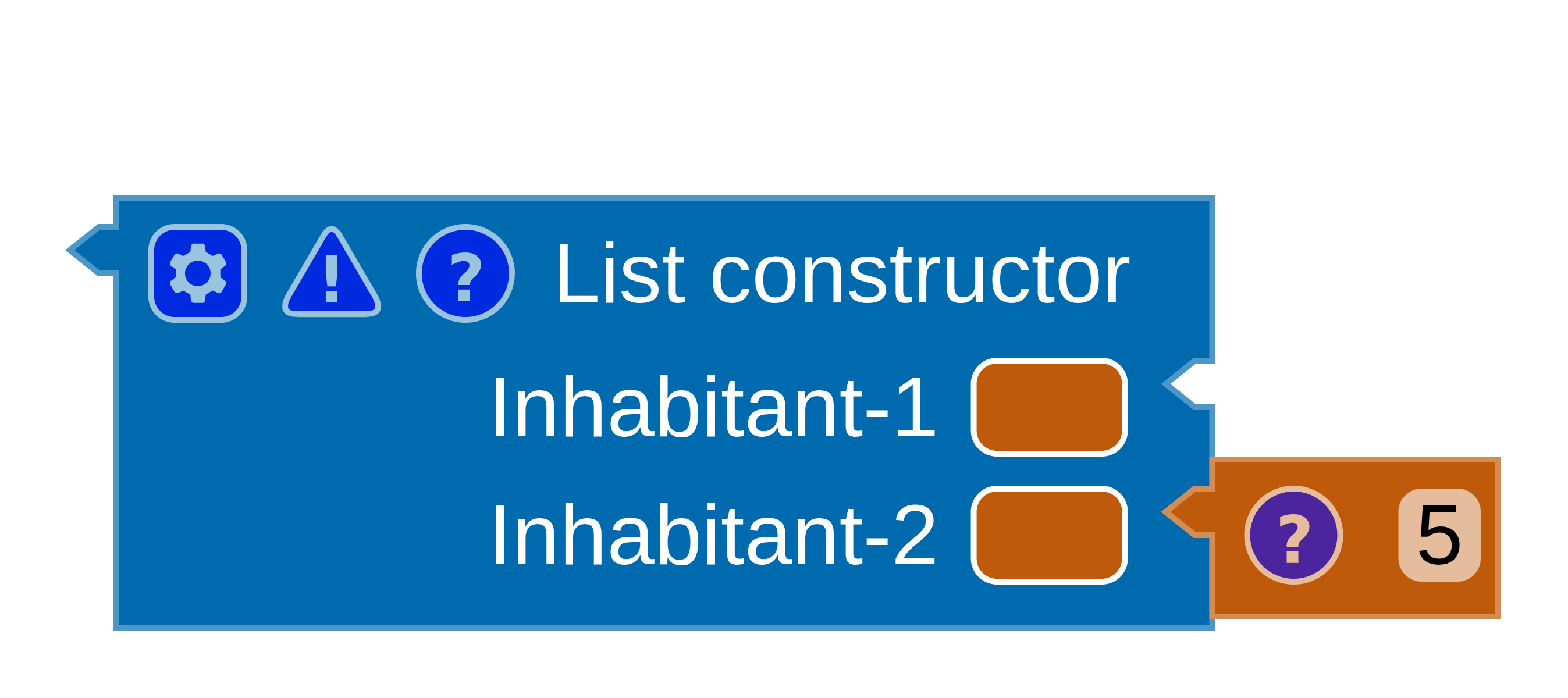

A block with no informative children whose type is inferred from its parent block. — **Fig. 8** Inferred from the parent.

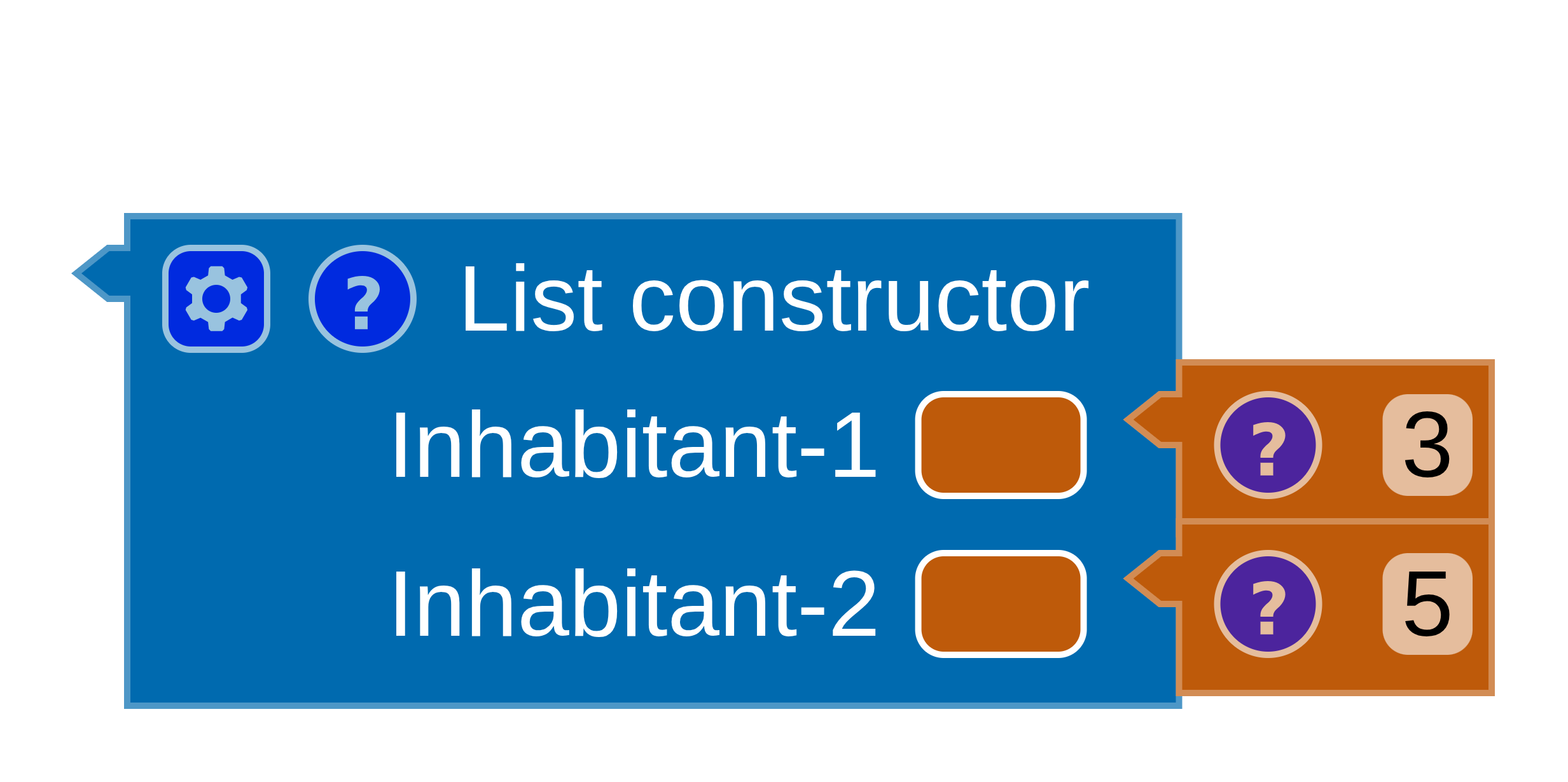

A block where the attached child determines the type before the parent is consulted. — **Fig. 9** The attached block first, then the parent.

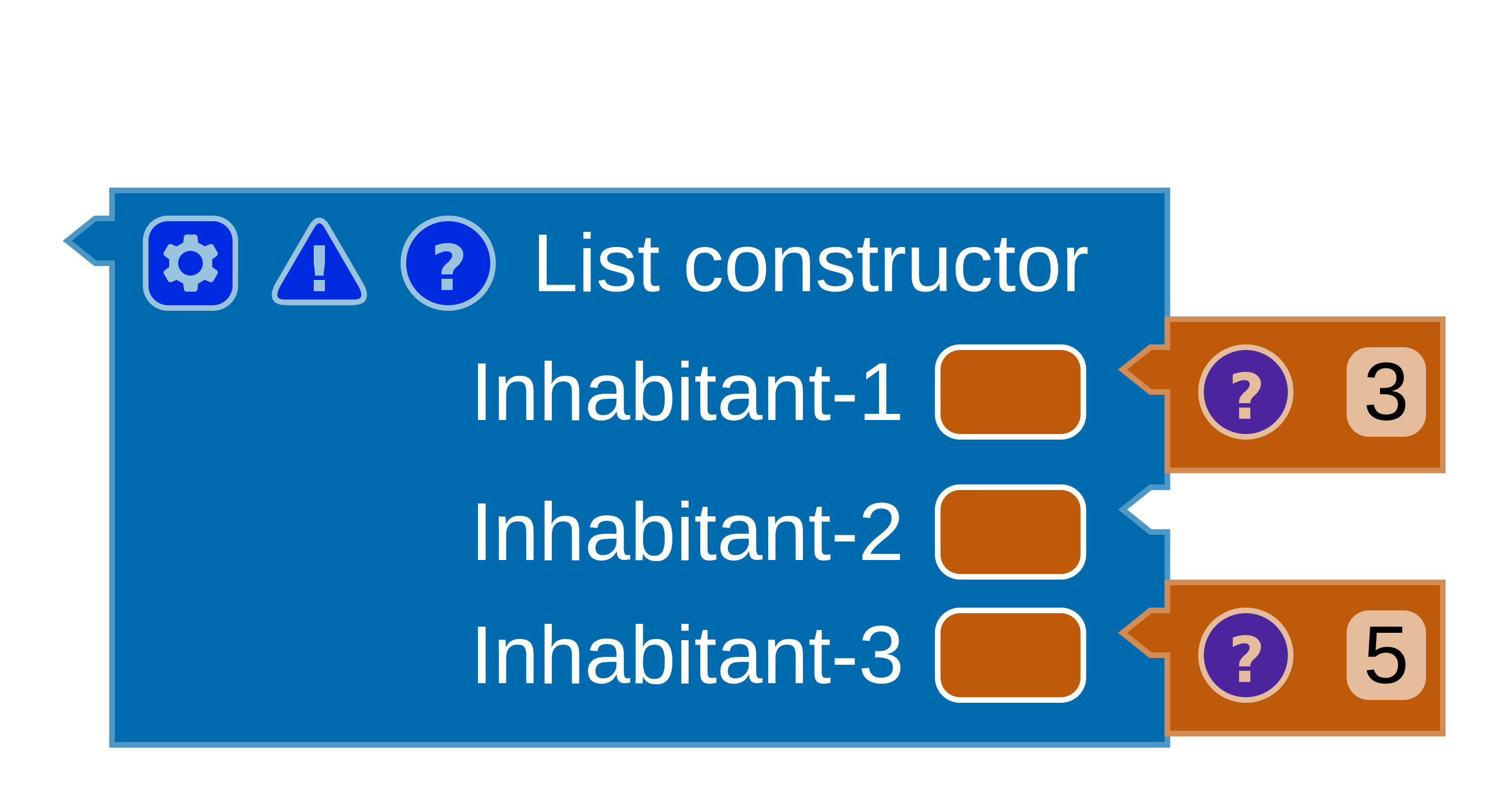

A further example of a suggestion box colour narrowing as blocks are attached. — **Fig. 10** The suggestion narrowing as the program grows.

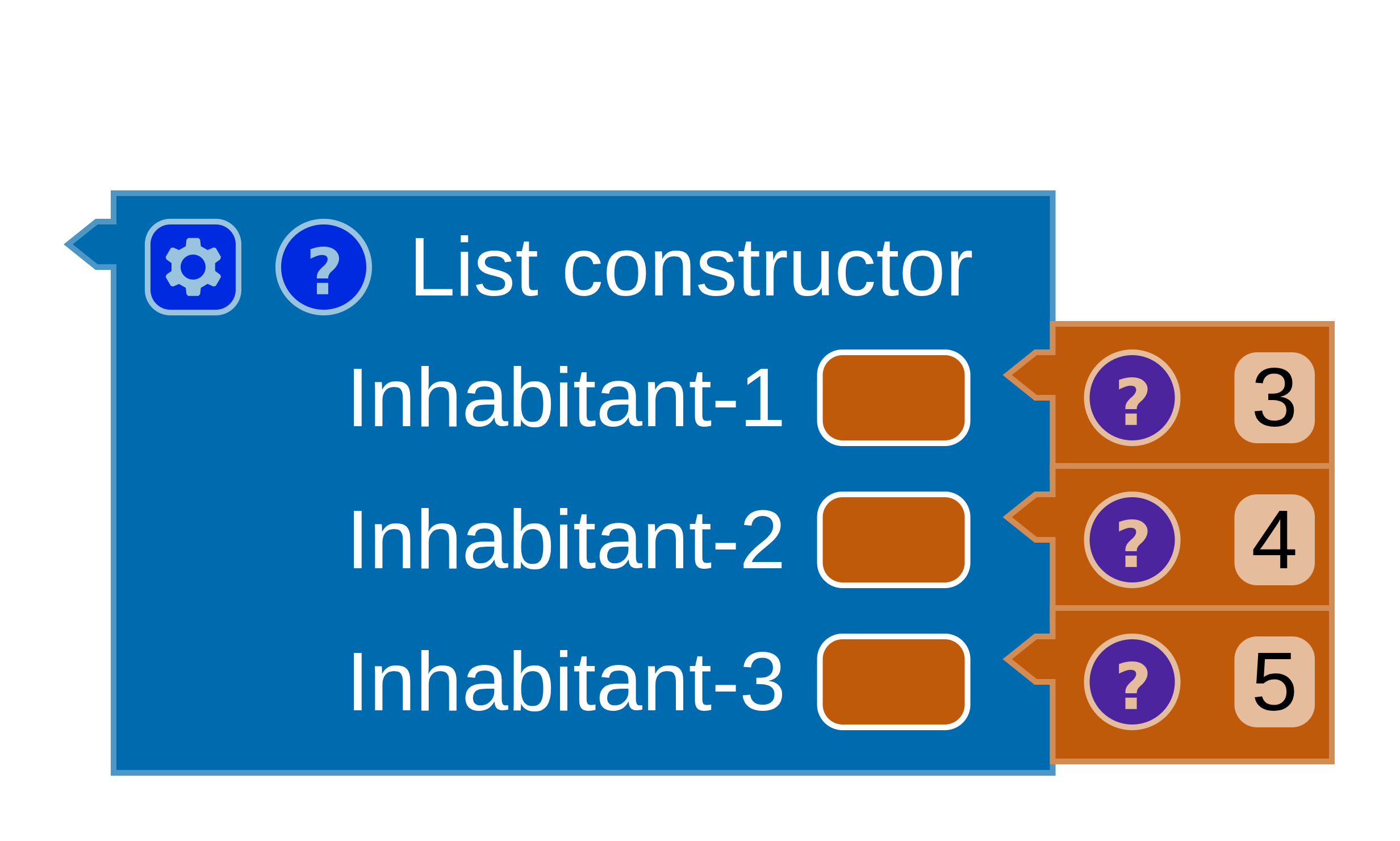

A completed block whose inputs all match their suggested types. — **Fig. 11** Everything agrees.

If you want to see the reasoning written out rather than coloured in, open the Typing tab of the code panel — MnL prints the full derivation, rule by rule. See the typing derivation.

MnL is developed at L-Workshop. This help was written against MnL 5.2.0 (build 240826).
