Your first program

MnL programs are built by dragging blocks out of the toolbox and attaching them to each other. Nothing is typed except names and literal values, and a block will only connect where the grammar allows it — so a program that assembles is a program that parses.

Drag, drop, attach

Open MnL and you start with an empty workspace holding one block: the black top-level block marked MNL. It is the parent of the whole program, and it accepts declaration blocks only.

1. Open a category in the Blocks sidebar — start with Declarations.
2. Drag a Variable or Function block onto the workspace.
3. Drop it against the top-level block until the notches line up and it snaps into place.
4. Fill the block’s inputs with more blocks — an identifier, an expression, and so on — until the warning triangle disappears.

Watch the status bar as you go: Blocks counts what is on the workspace, and Types reads OK once everything type-checks. Drag a block to the bin at the lower right of the workspace to delete it, or use Workspace: Fit Blocks in View when a program grows past the edge.

Declaration

A declaration binds a name to a value. MnL has two declaration blocks:

• Variable — binds a name to any expression.
• Function — binds a name to a function. It is a convenience for a variable block bound to a lambda block.

Variable

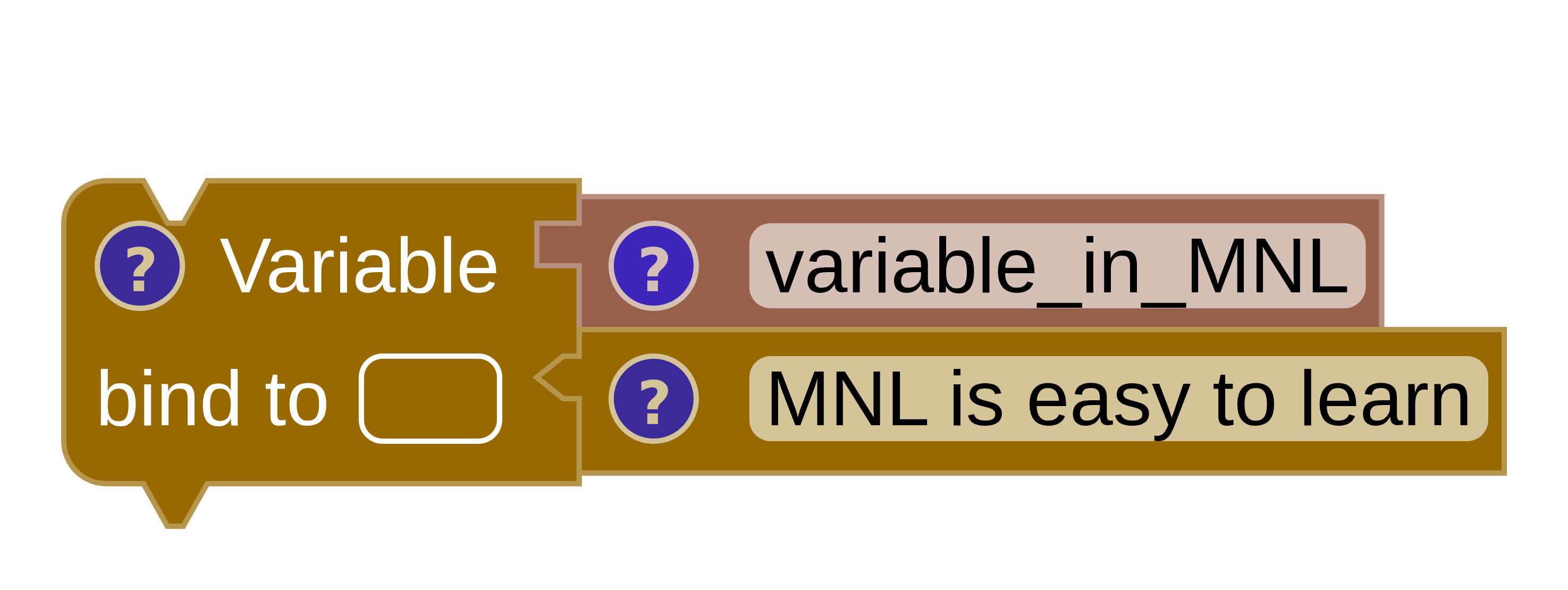

A complete variable block needs an identity block for the name and an expression block for the value. Below, the name variable_in_MNL is bound to the string "MNL is easy to learn". Anywhere you later need that string, you reach it through a Bound block carrying the same name.

SML

val variable_in_MNL = "MNL is easy to learn"

Scala

val variable_in_MNL = "MNL is easy to learn"

Expression

An expression is a value. Every expression block has one — that includes operators, constants and constructors. Hover the ? icon on any block to read the type and value MnL has worked out for it; see block info.

Operators

Primitive operators come in two shapes, by how many inputs they take: unary (one) and binary (two).

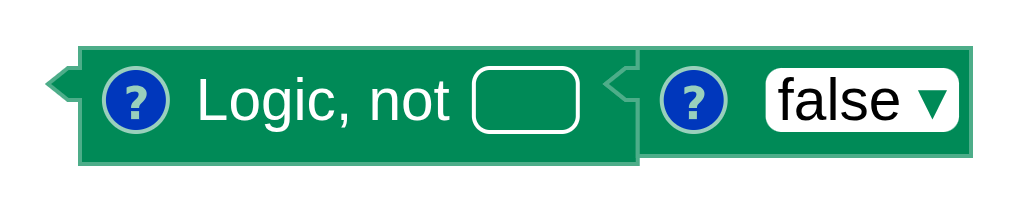

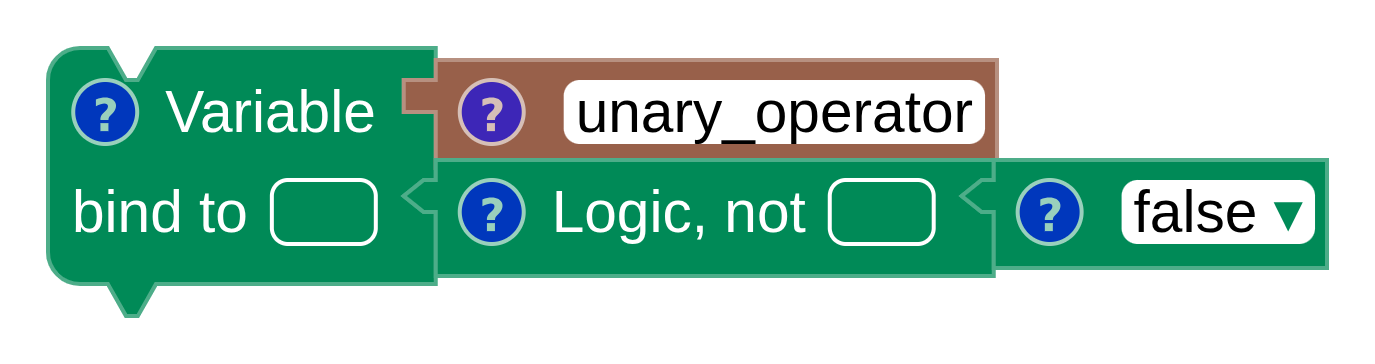

Unary

SML

(not false)

val unary_operator = (not false)

Scala

(!false)

val unary_operator = (!false)

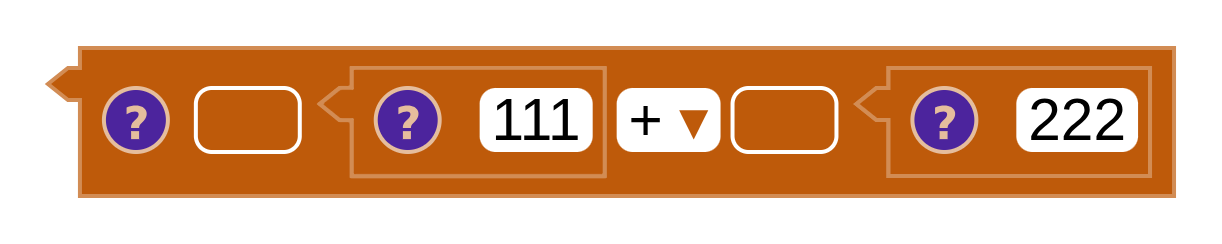

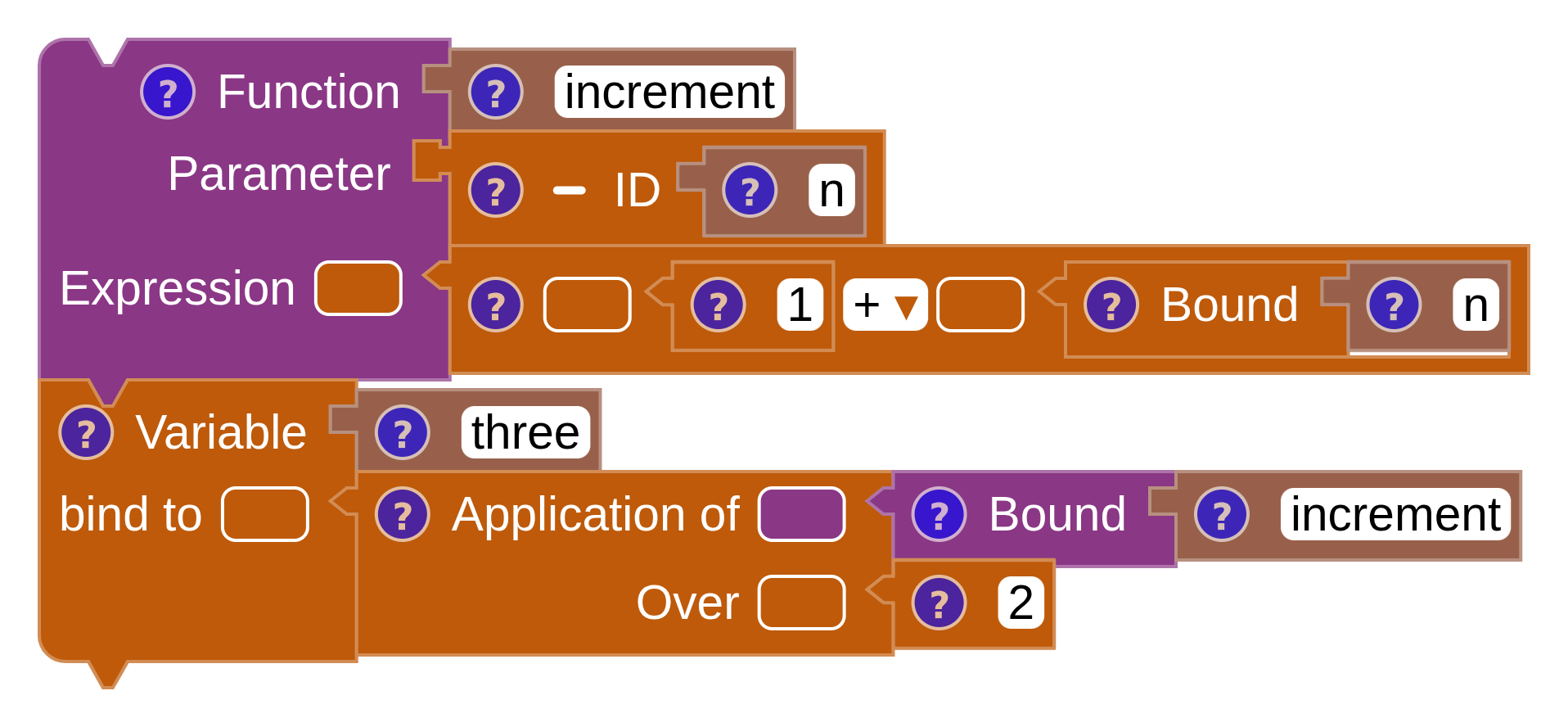

Binary

SML

(111 + 222)

fun increment (n) = (1 + n)
val three = increment (2)

Scala

(111 + 222)

def increment (n : Float) : Float = (1 + n)
val three = increment (2)

Selection

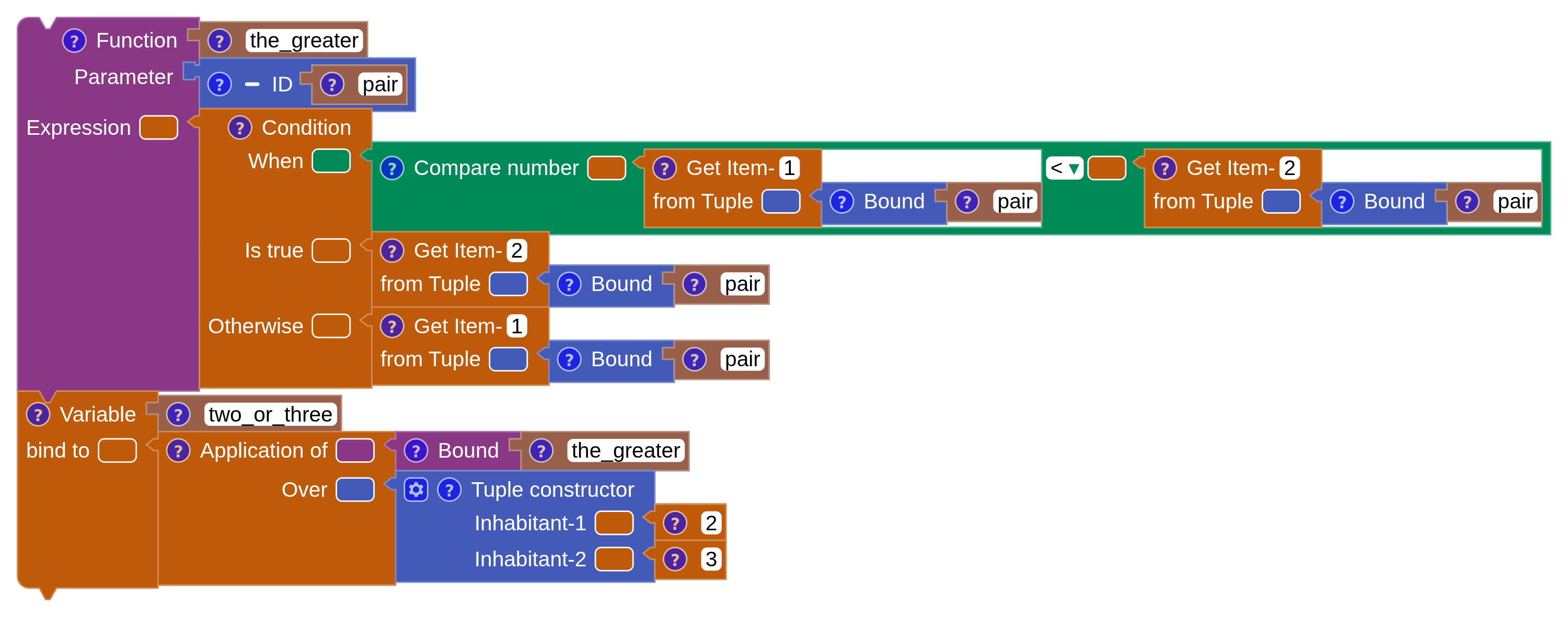

The If / Else block — labelled Condition on the workspace — takes a boolean When, an Is true branch and an Otherwise branch. Both branches must have the same type, and that type is the type of the whole block.

SML

(* SML does not support type inference for a tuple as a parameter.
   Other ML languages may support the syntax below. *)
fun the_greater (pair) =
  if ((#1 pair) < (#2 pair)) then (#2 pair) else (#1 pair)

val two_or_three = the_greater ((2, 3))

Scala

def the_greater (pair : (Float, Float)) : Float =
  if ((pair(0)) < (pair(1))) then (pair(1)) else (pair(0))

val two_or_three = the_greater ((2, 3))

Sequence

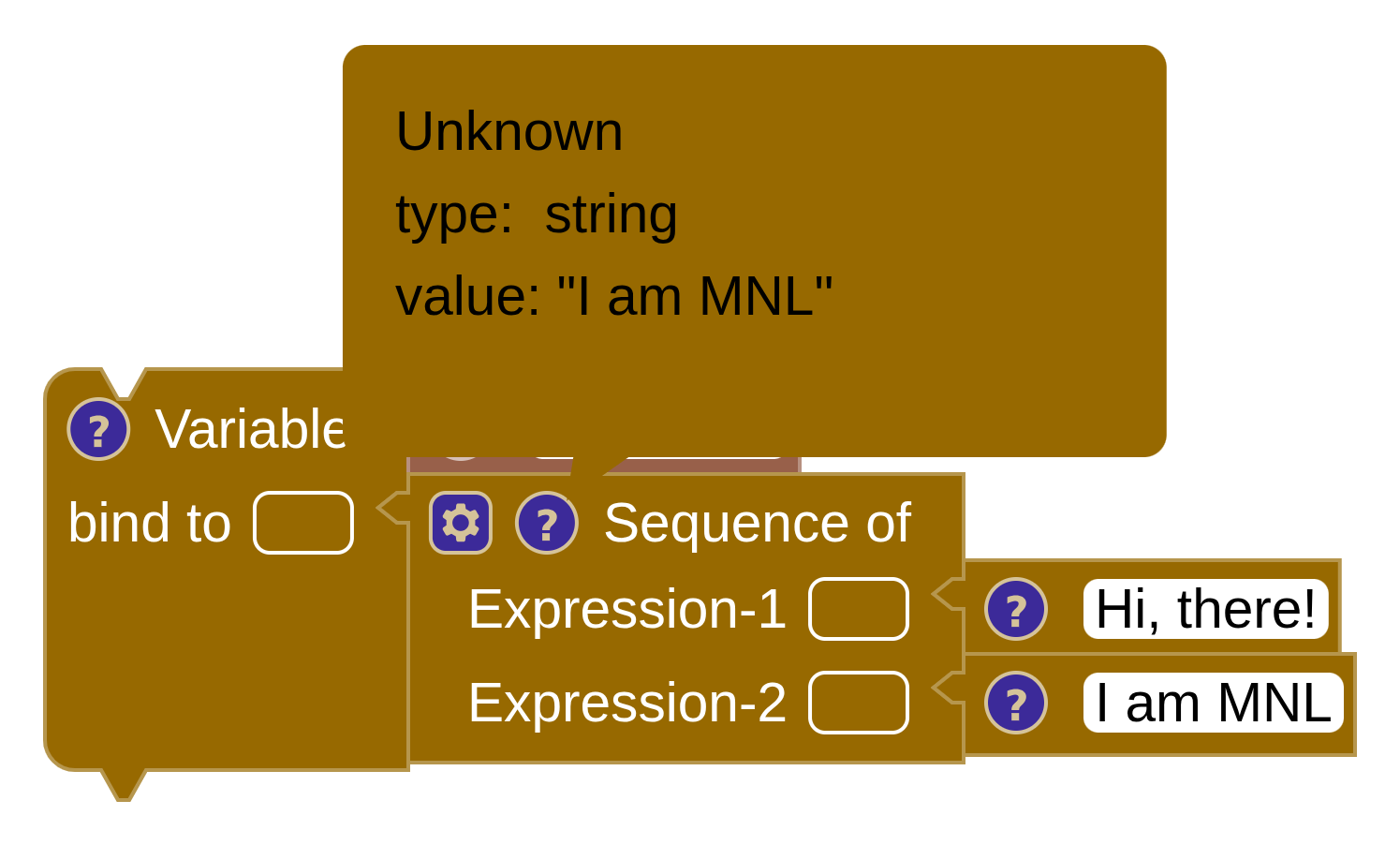

A sequence is a collection of expressions evaluated one after another. The last expression gives the sequence block its type and its value.

SML

val sequence = ("Hi, there!" ; "I am MNL")

Scala

val sequence = (() => {
  "Hi, there!"
  "I am MNL"
})()

Pattern matching

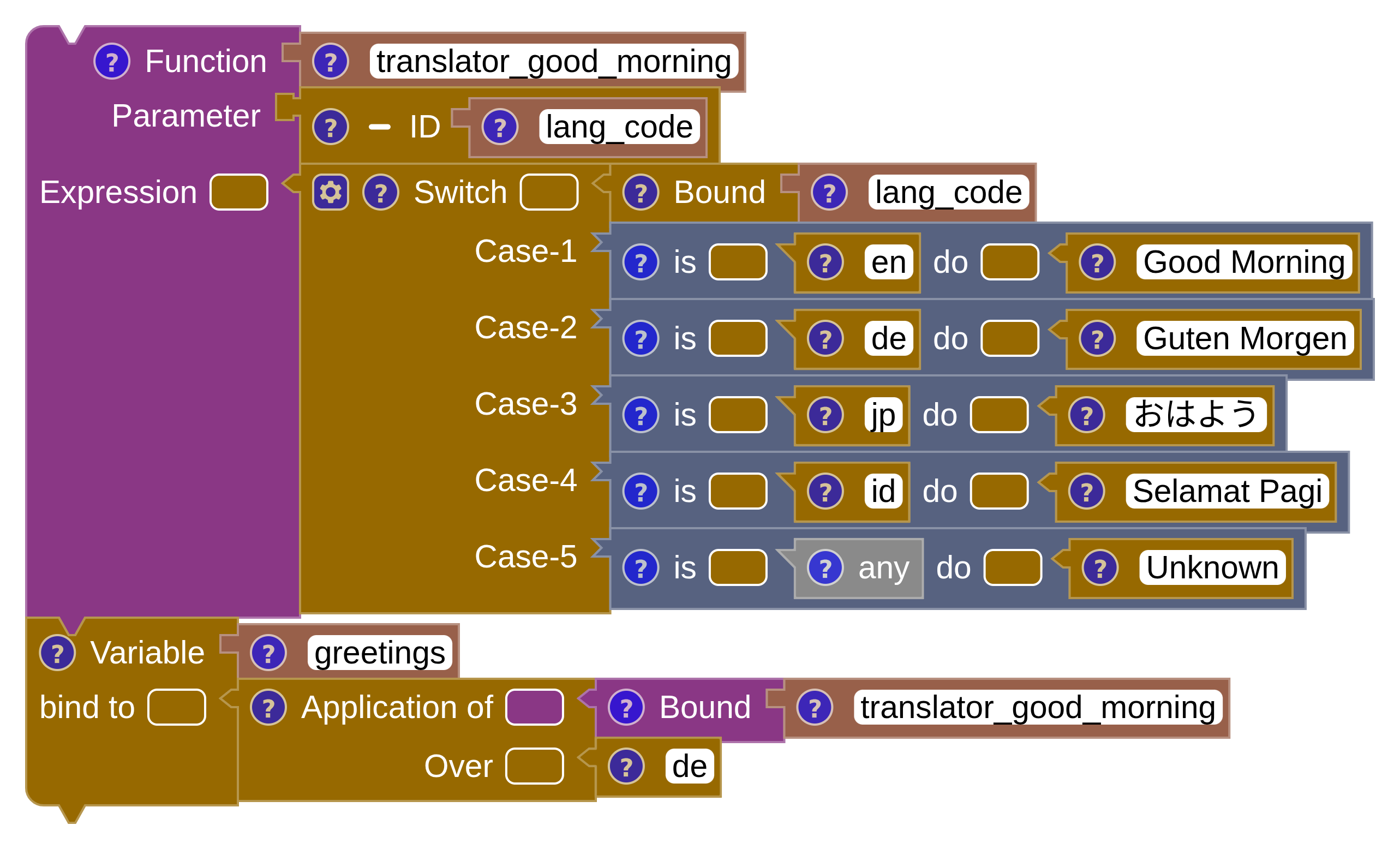

A Case of block matches an expression against a list of Match blocks. Each match pairs a pattern with a result. The patterns available in the toolbox are Pattern Boolean, Pattern Character, Pattern Number, Pattern String, Pattern Unit and Pattern Any — the last being the catch-all, written _.

SML

fun translator_good_morning (lang_code) =
  case lang_code of
      "en" => "Good Morning"
    | "de" => "Guten Morgen"
    | "jp" => "おはよう"
    | "id" => "Selamat Pagi"
    | _    => "Unknown"

val greetings = translator_good_morning ("de")

Scala

def translator_good_morning (lang_code : String) : String =
  lang_code match
    case "en" => "Good Morning"
    case "de" => "Guten Morgen"
    case "jp" => "おはよう"
    case "id" => "Selamat Pagi"
    case _    => "Unknown"

val greetings = translator_good_morning ("de")

Let … in

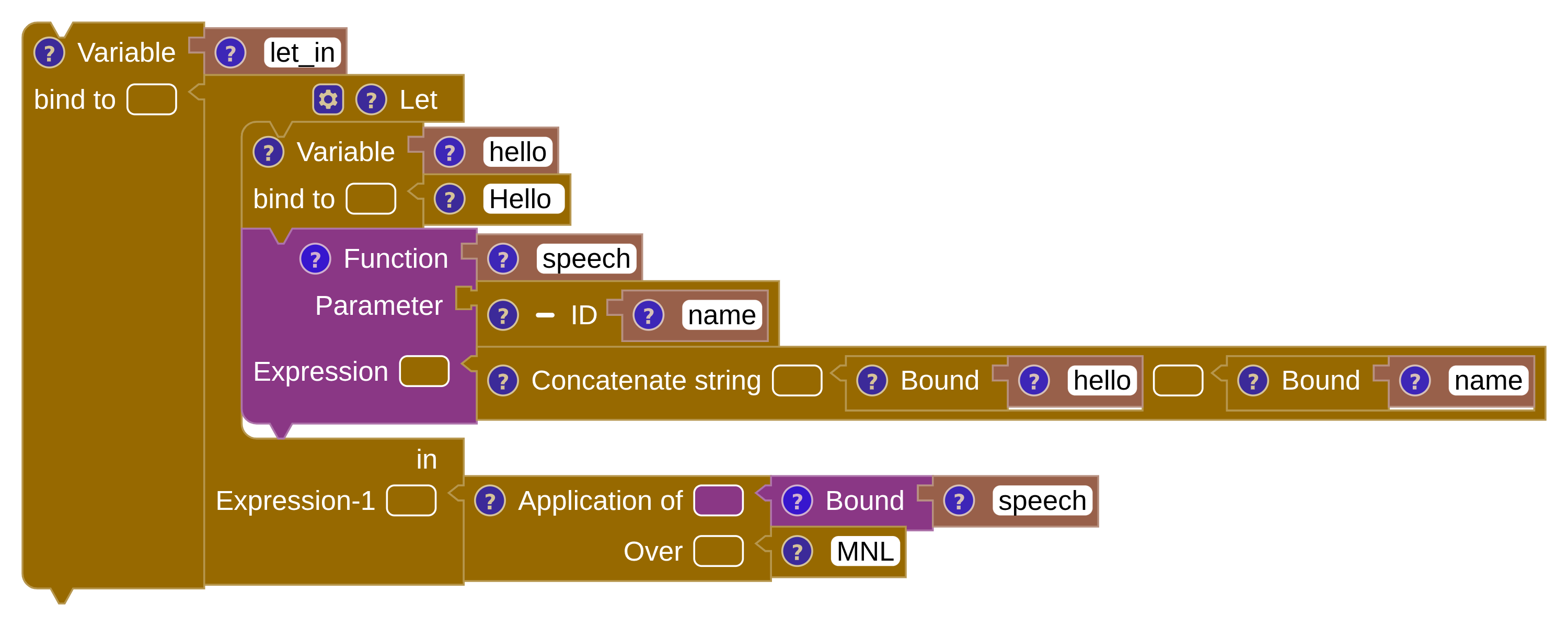

Let … in binds declarations locally, visible only inside the expression that follows.

SML

val let_in =
  let
    val hello = "Hello "
    fun speech (name) = (hello ^ name)
  in
    speech ("MNL")
  end

Scala

val let_in = (() => {
  val hello = "Hello "
  def speech (name : String) : String = (hello + name)
  speech ("MNL")
})()

With declarations, expressions and these four control constructs you can already write most of the bundled examples. Next, a closer look at the blocks themselves — what their shapes and colours mean, and how to read the icons they carry.
