Reference
Everything in this chapter is also reachable by exploring the interface. It is here so you do not have to.
Keyboard shortcuts
| Keys | Action |
|---|---|
| R | Load |
| → or . | Step |
| ← or , | Back |
| Space | Play / pause |
| Ctrl + N | New workspace |
| Ctrl + O | Open… |
| Ctrl + S | Save workspace |
| Ctrl + Enter | Apply the Code tab's text back to the blocks |
| Ctrl + Z | Undo one block edit |
| Ctrl + Shift + P | Command palette — every command by name |
| Esc | Close whatever is currently open |
Ctrl+N/O/S are suppressed while the Code tab's text editor has focus — there, those keys belong to the editor. Arrow keys also move focus between inspector tabs and along a resizer handle once it has focus.
Command palette
Ctrl+Shift+P, searchable by name and grouped by category:
| Group | Commands |
|---|---|
| File | New workspace · Open… · Save workspace · Export C source… · Save screenshot… · Restore autosave |
| Machine | Run (Load + Play) · Load · Step · Back · Play / Pause · Run to end |
| View | Toggle light/dark theme · Toggle block palette · Toggle code panel · Toggle machine dock · Toggle maximize inspector · Toggle maximize machine dock |
| Code | Copy program as C text |
| Examples | One command per example, loading it by name |
Menu map
| Menu | Contents |
|---|---|
| File | New · Open… (.m_c) · Save workspace
· Import C source… (.c/.txt) · Export
C source… · Save screenshot… · Restore autosave |
| Examples | Twenty-six programs grouped Simple / Intermediate / Advanced. Hovering previews the one-line description in Overview § The example library; loading over existing blocks asks first. |
| View | Toggle theme (default light) · show/hide the block palette, code panel and machine dock · autosave interval (1–20 minutes) · perspective picker · maximize inspector · maximize machine dock |
Open and Import are deliberately separate doors: Open takes only a Mirror-C workspace, Import takes only C or plain text into the Code tab, and each names the other if you hand it the wrong kind of file.
Perspectives & layout
A perspective is a named preset of which panels are open, not a mode with state of its own. It reads each panel's current collapse state and clicks only the ones that disagree with the preset — so toggling any one panel by hand afterwards demotes the current perspective to Custom rather than leaving a label on screen that no longer describes the layout.
| Perspective | Shows |
|---|---|
| Presentation | Blocks and the machine dock; the palette and inspector step away, and the canvas zooms in. |
| Edit | All four regions, for building a program. |
| Debug | All four regions, tuned toward stepping and the machine dock. |
| Custom | Whatever you have arranged by hand. |

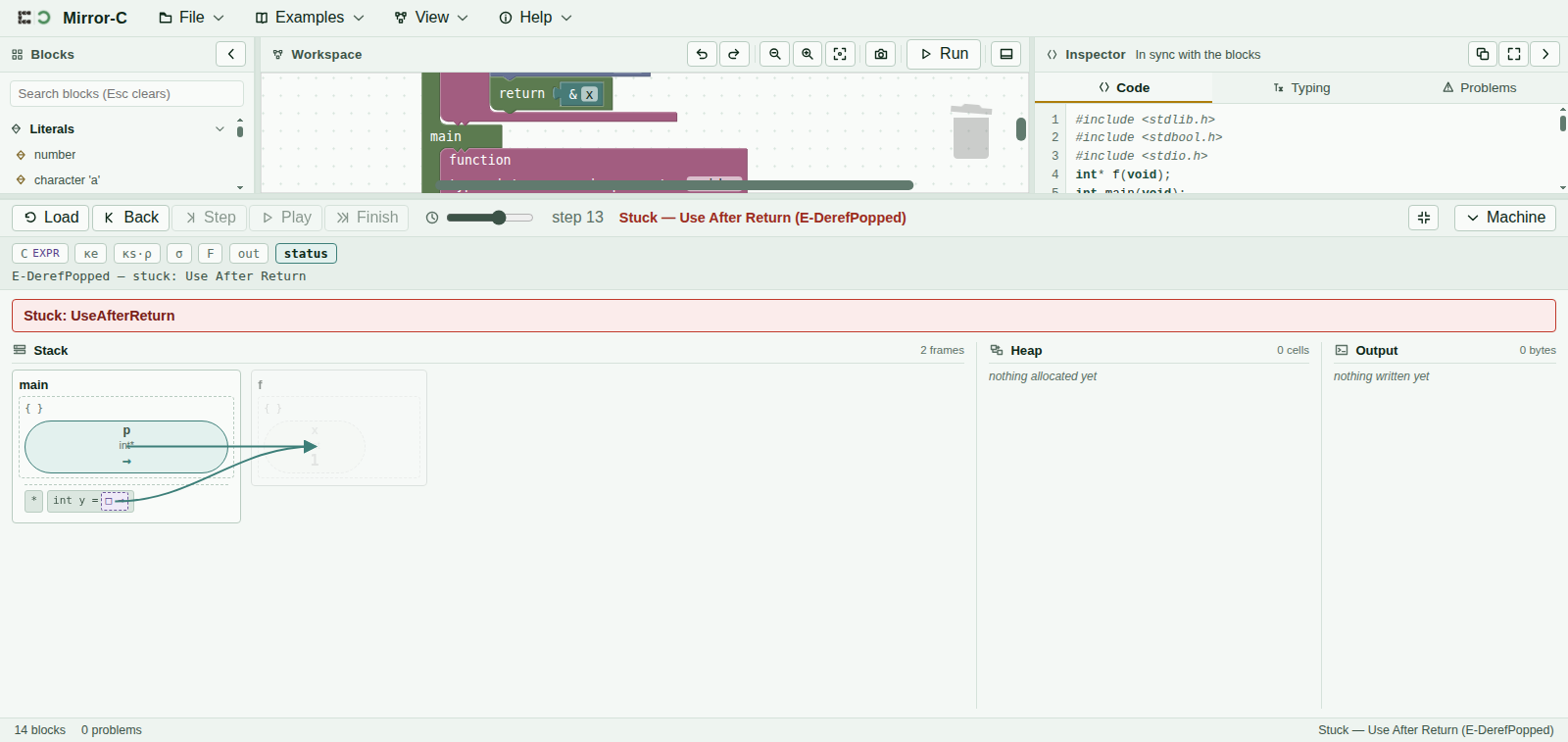

The layout is responsive at five widths: below 1260px the side panels' widths cap; below 1100px they become overlay drawers opened from the workspace title bar and dismissed by the scrim or Esc; below 900px the menu bar collapses behind a single Menu toggle; below 700px the chrome grows to touch size and the machine dock becomes a bottom sheet; at 480px the toolbar thins to essentials. The machine dock also has its own maximize button, independent of the inspector's, for a deep stack or a large heap that the resizer alone cannot make room for.
File formats
| Format | Holds |
|---|---|
.m_c | A workspace, saved as a JSON envelope carrying a format tag and a version. A file that does not match either is refused with a message rather than half-loaded. |
| C text | Not a saved format of its own, but Export C source writes
your program as plain .c, and Import C source reads one back into
the Code tab, applying it at once if it parses. |
| Local storage | The rolling autosave, plus your layout, theme, perspective and autosave interval. Autosave never restores itself on load — you bring it back with Restore autosave, so a silent auto-restore can never race the application's own boot demo. |
If you are in a research session, a separate, much narrower record is also kept — see If you are in a study session for exactly what that contains.
Glossary
| Term | Means |
|---|---|
| SF-CESK | The abstract machine: store, control, environment, expression
and statement kontinuations, and a frame stack. Mirror-C's own configuration adds an
output component on top, for printf. |
| Cell | One unit of storage in the store. Its drawn width is its type's
sizeof. |
| Edge / arrow | How a pointer value is drawn — a line to the cell it points at, never a numeric address. |
| Frame | One live function call's box in the Stack region, holding its own cells. |
| Reason | The closed, twelve-member label a stuck configuration carries. See Semantics. |
| Dead cell | A cell whose frame returned or was freed. Stays drawn, greyed, and its address is never reused. |
| Perspective | A named panel-visibility preset, applied only where it disagrees with the current layout. |
| Divergence corpus | Twelve programs, one per stuck reason, each recording
what gcc, clang and Mirror-C do with it. |
