06 / Compiler pipeline

From blocks to WebAssembly

The Lowering tab is a real compiler you can look inside. The same term you assembled from blocks is pushed through nine intermediate representations, each one a live view, and the last two are a WebAssembly module the page can execute.

The nine stages

Open the Inspector and choose Lowering, then pick a stage from the dropdown at the left of the panel toolbar.

#	Stage	What the pass does	Rendered as
1	Core	Desugars the term into a small core IR	listing
2	ANF	A-normal form: every intermediate result gets a name. This is where the CbS / CbV split is decided.	listing
3	Closures	Type-preserving closure conversion — free variables become an explicit captured environment	capture cards
4	First-order	Lambda lifting: nested functions become top-level ones	listing
5	CFG	A control-flow graph over virtual registers, with explicit control and heap	blocks + SVG edges
6	Assembly	Instruction selection and linear-scan register allocation	mnemonic listing
7	Machine code	Fixed-width bytecode for the register VM	hex + mnemonics, with Run
8	WAT	WebAssembly text format	listing
9	WASM	The assembled binary module	hex dump, with Run

Hovering a lowered artifact highlights the source blocks it came from, in both directions — the CFG panel's ↳ block button jumps back to the block that produced an instruction. Every stage carries that provenance, so no matter how far down you go you can always get back to the term you wrote.

Panel controls

Three toggles sit along the Lowering toolbar, and they apply to whichever stage you are viewing:

ANF | CPS — on the ANF stage, choose A-normal form or continuation-passing style.
Listing | Diff — show the stage's output, or a diff against the previous stage. Diff is the quickest way to see what a single pass actually changed.
CbS | CbV — which evaluation strategy the pipeline compiles for. This is not cosmetic: the ANF pass genuinely lowers the two strategies differently.

Core, ANF and CPS

Core is the desugared term. ANF then names every intermediate result, which is the step that turns a nested expression into a sequence of simple operations — the form every later pass assumes.

The CPS variant makes control flow explicit instead, passing an explicit continuation. On Factorial 5, under CbV, it reads:

-- Strategy: value
-- halt: halt0
letrec factorial = λ(n, k0).
  (n = 0) ▷ κt0.
    if t0 then k0 1
    else (n - 1) ▷ κt1. factorial t1 ▷ κt2. (n * t2) ▷ k0
in factorial 5 ▷ halt0

Each ▷ κt is “compute this, then bind the result to t and continue”. The recursive call's continuation κt2 is exactly the “multiply by n on the way back” that makes factorial non-tail-recursive — visible here as a continuation that still has work in it.

Closures and lifting

Closure conversion is type-preserving: a function type becomes an existential pairing a code pointer with a captured environment, written ⟦A→B⟧ = ∃γ. (…) × γ. The Closures stage renders this as capture cards — one per function, listing what it captured and from where.

Lambda lifting then hoists every function to the top level, so the First-order stage has no nested functions left. This is the point at which the program stops looking like λ-calculus and starts looking like something a machine could run.

CFG and SSA

The CFG stage is the most visual of the nine: basic blocks over virtual registers, with real SVG edges between them, labelled by the branch condition.

The CFG stage for factorial: three functions and five basic blocks, with n0 shown as a closure taking env and param n, block b0 branching on a comparison to b1 or b2, and edges drawn between the blocks. — **Fig. 1** *Factorial 5* as a control-flow graph — 3 functions, 5 basic blocks. `condbr %4 ? b1 : b2` is the `if`; `callclos` is the recursive call through a closure, and `force` is where the `letrec` thunk is entered.

Reading the instructions: %n are virtual registers, const loads a literal, condbr is the conditional branch, loadcode takes a code pointer, alloc / store build the two-object closure layout, and callclos calls through it. The heap is explicit from here down.

An SSA verifier runs over the CFG using dominance information and projects φ nodes. It is not a formality: the project's test suite feeds it three deliberately malformed graphs and requires it to reject all three, so the check has teeth.

Assembly and the VM

Instruction selection targets a permanent register ISA, and a linear-scan allocator assigns physical registers — spilling when a function needs more live values than there are registers. Machine code then encodes that into fixed-width words.

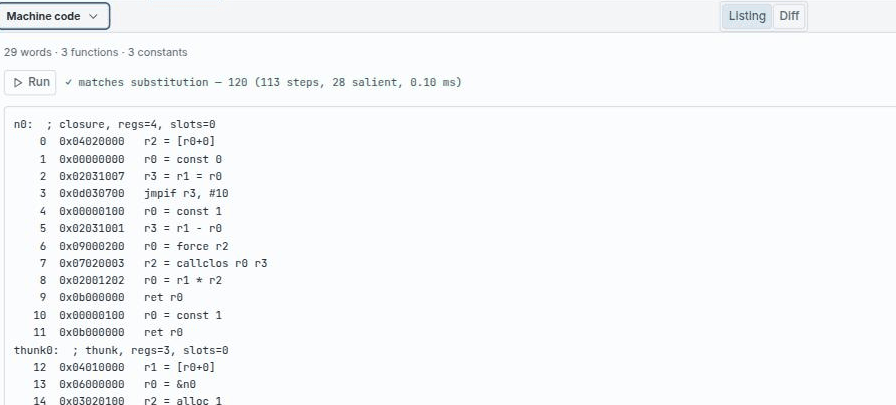

The Machine code stage after pressing Run, showing a green badge reading matches substitution, 120, in 113 steps, 28 salient, 0.10 milliseconds, above a hex and mnemonic listing. — **Fig. 2** 29 words, 3 functions, 3 constants. **Run** executes the bytecode and reports the verdict: *✓ matches substitution — 120 (113 steps, 28 salient, 0.10 ms)*. Note the salient count — 28 — is the one the substitution trace also reports.

The listing pairs each hex word with its mnemonic, so 0x0e020000 reads as ret r2. Two details worth noticing in Fig. 2: jmpif r2, #13 is a jump to an absolute instruction index, and the main function ends in tailcallclos — the VM implements tail calls in constant space, so a tail-recursive program does not grow the frame stack.

Like the CSEK machine, the VM's stepVm is pure, so it too supports exact time travel. It is the third evaluator in the Lockstep view.

WAT and WASM

The last two stages leave B-Lambda's own machine behind and emit real WebAssembly. WAT is the text format; WASM is the assembled binary.

The WASM stage showing 429 bytes of WebAssembly as a hex dump with an ASCII gutter, beginning with the bytes 00 61 73 6d 01 00 00 00. — **Fig. 3** 429 bytes of WebAssembly — module, memory, table and code. The first eight bytes are the standard header: `00 61 73 6d` is `\0asm`, followed by version 1. The header above the dump warns that these bytes carry no block provenance — the WAT stage is the last one that can trace back to a block.

The module is not a listing pretending to be a binary. Press Run and the page instantiates and executes it:

The WASM stage after Run, with a green badge reading matches substitution, 120, in 7.10 milliseconds. — **Fig. 4** The same program, executed as WebAssembly by the browser: *✓ matches substitution — 120 (7.10 ms)*.

So a term you built by dragging blocks has been compiled, in the browser, to a WebAssembly module that the browser then ran — and the result was checked against a substitution semantics defined on those same blocks.

The cross-check

Every one of those green badges is an instance of the same discipline. Each pass has a value-preservation oracle — a small interpreter for that stage's IR, checked against the substitution stepper for every pinned case and every shipped example, under both strategies.

One test guards the whole compiler

The capstone check is that for every program × strategy, substitution ≡ CSEK ≡ bytecode — with the bytecode run through an encode/decode round-trip, so the encoder is checked too. If a lowering pass ever changed the meaning of a program, that check would fail rather than the bug reaching a badge.

Individual passes are checked in their own right as well: that ANF and closure conversion preserve values, that the CFG interpreter matches substitution, that the SSA verifier rejects malformed graphs, that register allocation spills correctly under pressure, that the lockstep sync count equals the CSEK salient-rule count, and that a step never mutates an earlier snapshot.

Block Lambda is developed at L-Workshop. This help was written against Block Lambda 1.2.0.
