02 / Getting started

Your first lambda term

The whole language is three constructs — a variable, an abstraction, an application. Everything else in the toolbox is a convenience built on top of them. This chapter builds each one, then shows you the shortcut for when dragging blocks is slower than typing.

Your first term

Open B-Lambda on an empty workspace and build the identity function:

From the Abstraction category, drag λ x . body onto the workspace.
Click the x field and name the parameter, or leave it as x.
From Variables, drag λ x . x into the body socket. This block is a variable reference, not a new binder — set its field to the same name, x.

The Inspector's Code tab now reads lambda x. x and the Types tab reports 'a -> 'a. That type variable is the point: nothing in the term constrains what x is, so the identity function works at every type. See let-polymorphism.

Bound vs free

A variable block whose name matches an enclosing binder picks up that binder's type. A name with no enclosing binder stays free, and inference gives it a fresh type variable instead. Note that the word bound printed on the block is part of its fixed wording, not a verdict — to catch a typo in a parameter name, look at the inferred type rather than the label.

Applying a function

Application is its own block, from the Application category. The palette card shows it as func · arg, because in the λ-calculus application is just juxtaposition with no syntax of its own; on the canvas the block spells the same thing out in words, application of f over a, with the two sockets inline.

Also in that category is ( term ) — labelled grouping on the palette card, and reading parentheses once it is on the canvas. It changes nothing about evaluation; it exists so that generated text and printed derivations bracket the way you meant. Application associates to the left, so f g h means (f g) h; wrap the argument in a parentheses block when you want f (g h).

let and letrec

The Let Binding category has two blocks, and the difference between them matters:

Block	Reads	Use it when
≔ let	`let x = … in …`	The bound value does not refer to itself. Generalised, so it is polymorphic.
↻ letrec	`letrec f = … in …`	The bound value calls itself. Inferred monomorphically.

Recursion needs letrec: inside a plain let, the name being bound is not yet in scope on the right-hand side, so a self-reference would be a free variable. The Factorial 5 example is the canonical shape:

letrec factorial = λn. if (n = 0) then 1 else (n * (factorial (n - 1)))
in (factorial 5)

Why letrec is monomorphic

Generalising a binding while you are still inferring its own body is unsound in general, so letrec types its binding at a single type. In practice this is enough for the recursive functions you would write here — factorial, Fibonacci, GCD are all monomorphic. A polymorphic recursive function would need a type annotation, and B-Lambda has no annotation syntax.

Typing text instead

The Inspector's Code tab is editable, and it is often the faster way in. Type a term as text, press Sync, and B-Lambda parses it and rebuilds the workspace as blocks.

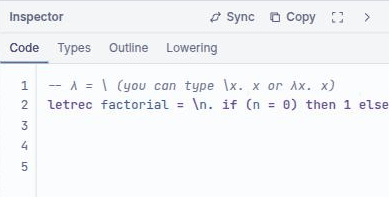

The Inspector's Code tab showing the factorial term as syntax-highlighted text on numbered lines, with Sync and Copy buttons in the panel header. — **Fig. 1** The *Code* tab. **Sync** pushes edited text back into blocks; **Copy** lifts the term out as plain text.

Both spellings of the binder are accepted, so you do not have to hunt for a λ on your keyboard:

\x. x        -- backslash
λx. x        -- the real thing
lambda x. x  -- also fine

The traffic goes both ways. Editing blocks regenerates the text (the panel footer confirms Synchronized from workspace); editing the text and syncing regenerates the blocks. If a term will not parse, the workspace is left alone rather than half-rebuilt.

Running the program

Run in the workspace title bar evaluates the whole program and puts the result on the bottom panel's Output tab. For anything more detailed than a final answer — seeing the reduction happen, or stepping a machine — use the Semantics dock instead.

Every term block also carries a Blockly comment icon. Open it for a small report: the block's kind, its inferred type, its reduced value, and any local type problems. More → Add Type Comments refreshes all of them at once.

The Inspector's Selected block pane showing an Application block with term (factorial (n - 1)), inferred type int, and status Type inference succeeded. — **Fig. 2** Selecting a block fills the Inspector's *Selected block* pane with that sub-term, its type, and its status. Here the recursive call `(factorial (n - 1))` is selected.

Reading the status bar

Left to right along the bottom edge:

File name — Untitled workspace, or the .blc you loaded.
Blocks — how many blocks the workspace holds. A useful sanity check: the Factorial 5 example is 17.
Problems — the type-error count, mirroring the Problems tab. It is a button; clicking it opens that tab.
The status message, in the middle — what just happened, in words. It reads Ready. when there is nothing to report, and announces things like a renderer change or a completed run as they occur.
Perspective — the current layout preset, or Custom.
Autosave — Autosave pending or Saved locally, with a time.
