Blocks and SML text, both ways

ViSML's real engine room is a pair of translators: a generator that turns your block program into SML source text, and a parser that turns SML source text back into blocks. Neither is a toy — both are checked, mechanically, against each other.

Blocks → SML

Every block type has a corresponding generator function, keyed by block type, that emits its piece of SML source. A handful of details in that generator matter enough to call out on their own:

• Negative literals use ~. SML spells a negative integer or word as ~5, not -5 — the generator follows that convention rather than the more familiar minus sign.
• Strings and characters are properly quoted. String literals come out double-quoted, and character literals as SML's #"c" form.
• Reserved words are guarded. An identifier that collides with an SML keyword is caught before it reaches the generated text.
• Naked top-level expressions get wrapped. SML has no bare-expression statement, so a top-level expression is emitted as local _ = <expr> rather than failing to generate at all.

A custom pretty-printer then re-flows the raw generated text: consistent indentation, a blank line between top-level declarations, aligned | alternatives in a multi-clause function or a datatype. Because SML is layout-insensitive, none of this changes what the program means — it only changes how it reads. The Code panel is where you see the result live, as covered in Getting started.

SML → blocks

The other direction is a genuine hand-written recursive-descent parser for SML, not a thin wrapper around the generator run backward. It accepts the generator's own output, plus a tolerant superset of it, and builds an equivalent Blockly JSON workspace tree from whatever it parses.

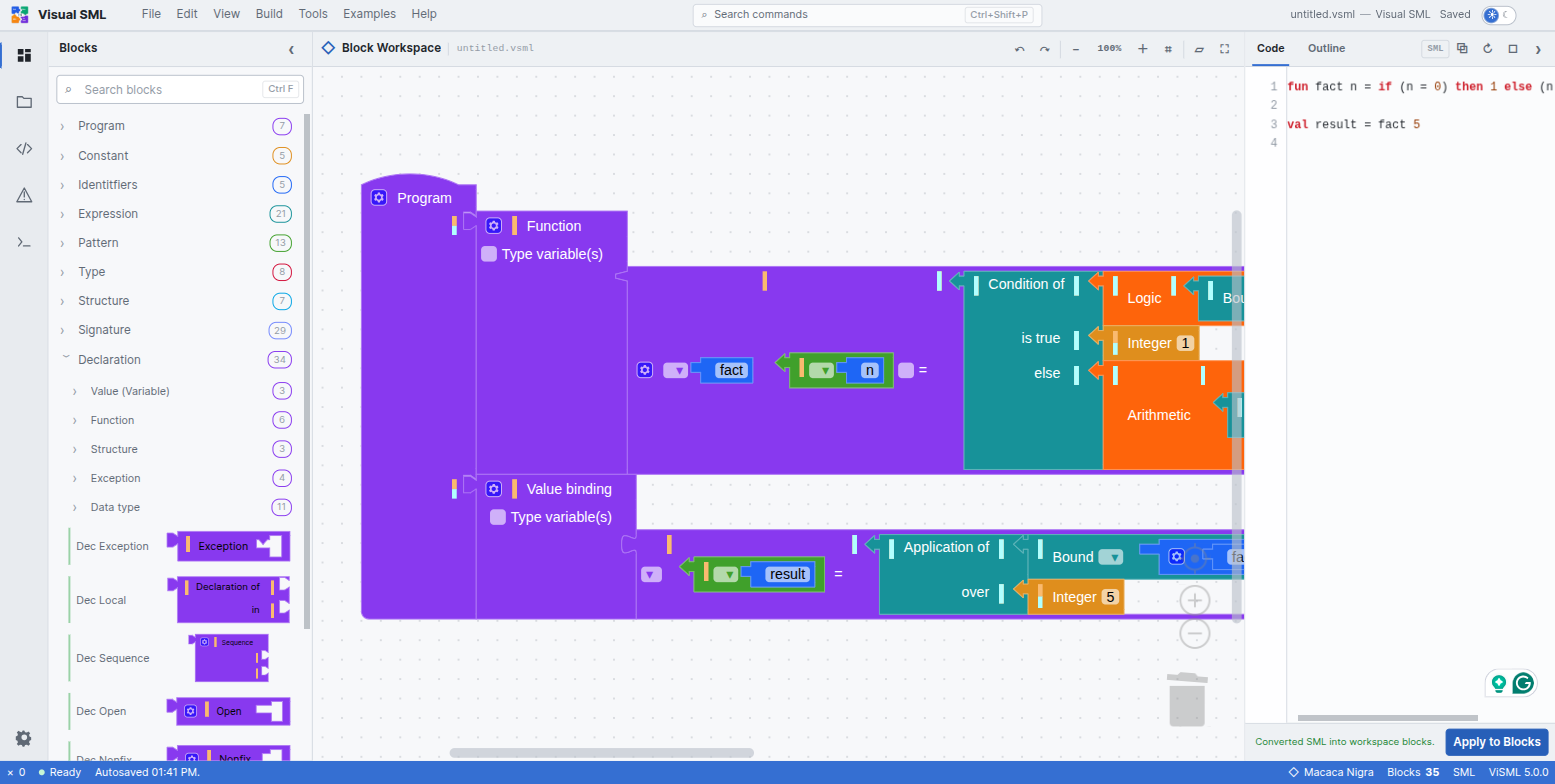

The entry point is the Apply to Blocks button beneath the Code panel: paste or type SML text, click it, and the workspace rebuilds itself to match. Typing this, for instance

fun fact n = if (n = 0) then 1 else n * fact (n - 1);
val result = fact 5;

and pressing Apply to Blocks produces a correct 35-block workspace and a confirming status-bar message, “Converted SML into workspace blocks.” This is the same mechanism the Factorial example uses under the hood, and it is worth trying on code you write yourself the first time you want to build something faster than dragging blocks would allow.

The round-trip suite

npm test runs a battery of SML snippets — arithmetic precedence, logic, tuples, lists, cons/append, string concatenation, function composition (o), typed expressions, the op prefix, and more — through parse → generate → re-parse and checks that the result is a fixed point: generating from the re-parsed blocks reproduces the same text. All seven of ViSML's built-in examples pass this with zero errors.

There is no further compilation target past this. Blocks and SML source text are the only two representations ViSML translates between — there is no bytecode, no JavaScript, no WASM output. The unrelated Export Workspace as PNG feature is worth distinguishing from all of this: it is a screenshot of the visual block diagram, not a code export.

ViSML does not execute programs

The command palette says this plainly if you go looking. Filter it to “run” and the single result is a permanently disabled entry:

To actually run a program you build in ViSML, copy the generated SML out of the Code panel and feed it to a real Standard ML implementation — SML/NJ, MLton, or Poly/ML will all compile and run it as ordinary SML, because that is exactly what it is. This is the same point made early in Getting started; it is worth repeating here because it is the boundary that defines what this whole chapter is and is not about.
