05 / Semantics

Two evaluators that have to agree

A program in BFJ is evaluated by reducing one entry expression to a value — a fully-applied constructor call, new C(v̄), with no heap and no mutation anywhere. What makes the chapter interesting is that BFJ computes that reduction twice, by two separately-implemented methods, and tests that they never disagree.

Substitution reduction

fjSubstitution.ts is the definition of record: a small-step structural operational semantics over three computation rules — R-Field, R-Invk, R-Cast — plus the congruence rules (RC-*) that push reduction into sub-expressions. Evaluation order is strict, left to right: the receiver reduces before the method name resolves, and arguments reduce left to right before the call itself fires.

Capture-avoidance, the usual headache in a substitution semantics, is vacuous here: FJ has no binders beyond this and a method's parameters, and both are always substituted simultaneously and closed. There is nothing left to accidentally capture.

The Reduction tab in the bottom dock precomputes the whole trace on Load, then lets Step/Back/Play move a cursor through it. Loading Pair · swap and building it produces this trace:

0            new Pair(new A(), new B()).swap().fst
1 ↦ R-Invk   new Pair(new Pair(new A(), new B()).snd, new Pair(new A(), new B()).fst).fst
2 ↦ R-Field  new Pair(new B(), new Pair(new A(), new B()).fst).fst
3 ↦ R-Field  new Pair(new B(), new A()).fst
4 ↦ R-Field  new B()

swap() fires first under R-Invk, substituting the receiver into a fresh Pair with its fields exchanged; the two remaining steps are R-Field reading .fst down through that fresh pair to the value underneath. Four lines, three rule firings, one value — and every line is a literal block tree, not a text rendering of one.

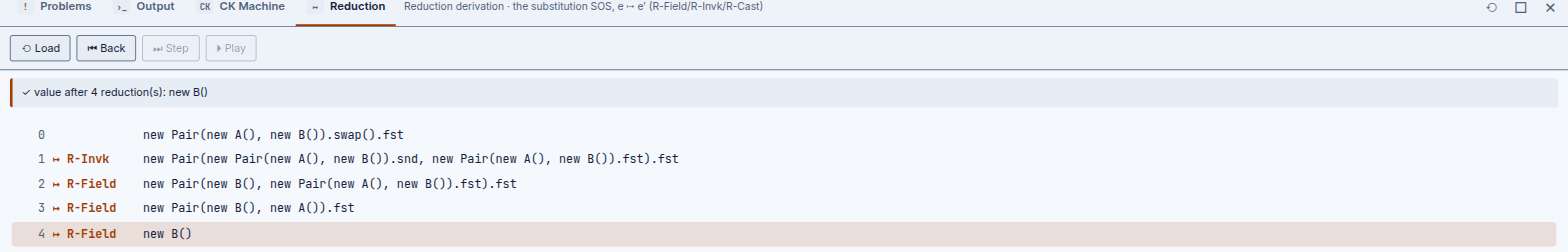

The BFJ Reduction tab showing the numbered substitution-based derivation for the Pair swap example, each step tagged with its rule name. — **Fig. 2** The Reduction tab rendering the trace above. Each row names its rule; the cursor advances with **Step** or **Play**.

The CK machine

fjMachine.ts is a CK abstract machine: control-and-kontinuation pairs ⟨e, κ⟩, with an explicit Frame grammar — ◻.f, ◻.m(ē), v.m(v̄,◻,ē), new C(v̄,◻,ē), (C)◻ — and every transition individually observable, including the administrative frame push/pop steps the substitution trace never names.

The BFJ CK Machine tab mid-run, showing the Control, Control-recomposed and Kontinuation-stack columns for the Pair swap example. — **Fig. 1** The CK Machine tab on *Pair · swap*. Kontinuation frames render top-first, as literal ◻-hole expressions.

Column	Holds
Control	The expression currently in focus, `e`
Control-recomposed	`plug(e, κ)` — the focus dropped back into its kontinuation, so you can see the whole term the machine is really working on
Kontinuation	The pending frames, innermost first, each a literal ◻-hole expression

On Pair · swap, Step reports each transition's name and whether it was salient — an R-* rule actually firing — or purely administrative: stepping through invk-fire-0 then field-fire reaches the same new B() the substitution trace does, just with more transitions counted along the way.

No store — on purpose

Unlike B-MJ's CESK machine, BFJ's CK machine has no Store. MiniJava has mutable objects on a heap, so its machine needs somewhere to put them; FJ has no assignment and no mutation at all, so there is nothing to store, and the letter is simply absent rather than present-but-empty.

Why they agree

The substitution semantics is the definition; the CK machine is a derived artifact, not an independent re-implementation guessed at separately — but derived does not mean untested. A dedicated lockstep test suite cross-checks that every salient transition the machine fires corresponds to exactly the rule the substitution trace names, for every shipped example. Both views share identical Load / Step / Back / Play controls for exactly this reason: stepping one alongside the other is how you would notice a disagreement if the suite ever missed one.

Stuck-but-safe casts

A failing cast is not a bug in either semantics — it is a first-class, non-crashing outcome. Load and run the Stupid cast example and the Output tab reports:

ClassCastException: B ⋠ A

That is exactly FJ's own progress theorem doing its job: a well-typed FJ program either reduces to a value or is a stuck cast — never stuck for any other reason. Both steppers and Run treat a failing T-SCast/T-DCast the same way: they stop cleanly and report which class failed to match which, rather than treating the mismatch as an internal error. This is also why the Problems tab reports a stupid cast as a warning rather than a type error — the type system already knows this outcome is possible and permitted, it is just telling you where.
