Thirteen blocks, five categories

The toolbox is an exact match to classic FJ — not a superset with the extra bits trimmed in the UI, but thirteen blocks because the grammar has thirteen productions. Nothing here exists for convenience.

The toolbox

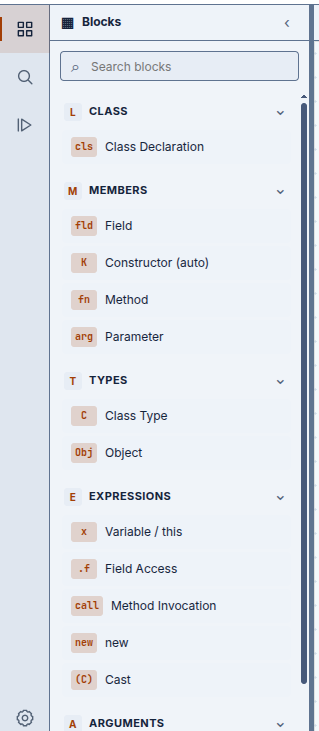

The BFJ blocks sidebar showing the Class, Members, Types, Expressions and Arguments categories with their blocks listed.
Fig. 1 The blocks sidebar. Five categories, matching FJ's own grammar rather than a convenience grouping.
Category Blocks
Class fj_class — class C extends D { fields; ctor; methods }
Members fj_field (C f) · fj_ctor (derived) · fj_method (C0 m(params){ return e; }) · fj_param (C x)
Types fj_type_class (a class name) · fj_type_object (Object, the root)
Expressions fj_var (variable, including this) · fj_field_access (e.f) · fj_invk (e.m(ē)) · fj_new (new C(ē)) · fj_cast ((C)e)
Arguments fj_arg — one cons-cell of an actual-argument list

A few of these are worth calling out because their names do not quite give them away:

  • fj_var is one block, one production, for every variable reference — this included. FJ treats this as an ordinary variable bound implicitly at the start of every method body, so there is no separate this block the way some designs would add one.
  • fj_type_object is Object, FJ's root type (“Top”). It is the type every class implicitly extends and every upcast can target.
  • fj_arg stacks under fj_new and fj_invk, one block per argument, rather than either call having a fixed arity or a Blockly “mutator” gear icon. The same stacking discipline applies to fj_field/fj_param/fj_method, and it is not incidental — see the note on cons-lists below.

Confirmed omissions, all deliberate: no interfaces, no assignment or mutation, no null, no primitive types beyond the implicit Object root, no generics, no overloading. FJ's entire research value is being small enough to prove things about, and every one of these is a feature that would make the proofs bigger without changing what the calculus is for.

The fixed constructor

fj_ctor is not a block you fill in. It has no sockets at all — it reads constructor (auto) on the canvas and is synthesized directly from the class's own field list plus its superclass's fields, in the order FJ's typing rules require.

Why the constructor can't be free-form

FJ's class-formation rule says the constructor for C is fully determined by fields(C) — there is exactly one legal constructor per field list, always. If fj_ctor were an ordinary editable block, two structurally different block trees could denote the same program (the same fields, written in a different constructor shape), which would break a bijection the project states and tests as a theorem: every block tree corresponds to exactly one AST, and vice versa. Making the constructor derived rather than authored is what keeps that bijection true rather than aspirational. See the round-trip chapter for the proof itself.

The same reasoning is why field, parameter and argument lists are fixed, stackable cons-cells rather than a variable-arity mutator block: per-position subtype checking (each C₀ against its matching D₀) and the bijection above both need the list's shape to be unambiguous, and a mutator's internal state is exactly the kind of extra bookkeeping that would make two equivalent programs look different as blocks.

The BFJ-Thrasos renderer

BFJ uses a custom Blockly renderer called BFJ-Thrasos. It subclasses Blockly's Thrasos renderer, built the same way as B-MJ's BMJ-Thrasos — reimplemented in the same style for FJ's grammar, not shared code — and gives each FJ non-terminal a distinct connector shape, not just a colour.

Blockly's check-string metadata still does the actual enforcing: you cannot plug a Type into an Expression socket regardless of what things look like. What the shapes add is that a mismatch is visible before you try the connection, not discovered by a rejected drag.

Three renderers, three different jobs

BMJ-Thrasos changes connector shapes so MiniJava's ten non-terminals are visible; B-Lambda's Tude changes block geometry instead, so a λ-term reads as nested text. BFJ-Thrasos is doing the same thing as BMJ-Thrasos — grammar-aware connectors, independently built — for a much smaller grammar: FJ has far fewer non-terminals than MiniJava, so BFJ-Thrasos needs fewer shape families than BMJ-Thrasos's ten.

Connector shapes

Two orientations, split by what FJ actually needs a socket for: a single value in a slot, or a sequence of things stacked one after another.

Horizontal — value sockets

Shape Non-terminal Reads as
Slim trapezoid Type Any type position
Wide, welcoming curve Object / ⟨Object⟩ The root type — it accepts anything, and the curve says so
Blocky triangular peak FJCtor The constructor slot — deliberately spiky, to signal “derived, not normal”

Vertical — stacking connections

Shape Non-terminal Reads as
Narrow diamond zigzag FJField A field, stacked under the class
Tall, deep chevron FJMethod A method, stacked under the field list
Smooth rounded arch FJParam A formal parameter, stacked in a method's parameter list
Repeated saw-tooth FJArg An actual argument, stacked in a call or new

The saw-tooth on FJArg is deliberately unlike the arch on FJParam: arguments and parameters are the two cons-lists in the grammar that are easiest to confuse at a glance, since a call site and a declaration can look almost identical once both are full of fj_var blocks.
